ICM1206ER900M is listed in the Common Mode Chokes range at ChipApex. The manufacturer field lists Vishay Dale. Its product description is CMC 370MA 2LN 90 OHM SMD. Review the specifications below when checking this part for your BOM.
Common Mode Chokes specifications for ICM1206ER900M
- Description：CMC 370MA 2LN 90 OHM SMD
- Series：ICM-1206
- Mfr：Vishay Dale
- Package：Tape & Reel (TR),Cut Tape (CT)
- Filter Type：Signal Line
- Number of Lines：2
- Current Rating (Max)：370mA
- DC Resistance (DCR) (Max)：300mOhm
- Voltage Rating - DC：50V
- Voltage Rating - AC：-
- Operating Temperature：-40°C ~ 85°C
- Ratings：-
- Approval Agency：-
- Features：-
- Mounting Type：Surface Mount
- Size / Dimension：0.126" L x 0.063" W (3.20mm x 1.60mm)
- Height (Max)：0.083" (2.10mm)
- Package / Case：Horizontal, 4 PC Pad
- Inductance @ Frequency：-
- Impedance @ Frequency：90 Ohms @ 100 MHz
- Qualification：-
- Grade：-
Common Mode Chokes datasheet and documents for ICM1206ER900M
Common Mode Chokes Overview

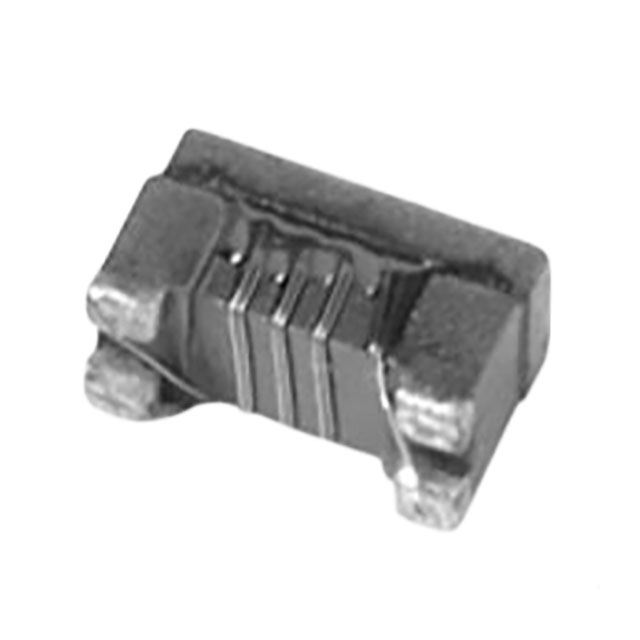

The Vishay Dale ICM1206ER900M is a surface-mount common mode choke designed for signal line applications. It features a 90 Ohms impedance with a 20% tolerance and operates within a temperature range of -40°C to +85°C. The component supports a maximum DC current of 370 mA and has a maximum DC resistance of 300 mOhms. Housed in a 1206 (3216 metric) package measuring 3.2 mm x 1.6 mm x 1.9 mm, it utilizes SMD/SMT termination for PCB mounting.
Common Mode Chokes Feature Summary
- Provides common mode noise suppression for signal lines
- Utilizes ferrite core material for effective filtering
- Designed for surface mount technology integration
Common Mode Chokes Applications
- Signal line protection
- DC/DC power supplies
- General electronic circuit filtering
Common Mode Chokes Procurement Notes
Verify the specific impedance tolerance and current ratings against the official Vishay datasheet before implementation. Confirm that the 1206 footprint dimensions align with the target PCB layout. Ensure the operating temperature range meets the environmental requirements of the final assembly. Cross-reference the manufacturer part number to avoid confusion with similar series components.
Common Mode Chokes Selection Notes
Select this component when a 90 Ohms impedance is required for signal line filtering in compact designs. The 1206 package offers a balance between size and performance. Consider the 370 mA current rating to ensure adequate headroom for the application. Verify compatibility with standard reflow soldering profiles for SMD components.
Common Mode Chokes Part Context
This component belongs to the Vishay Dale ICM series of common mode chokes. It is manufactured by Vishay / Dale and falls under the category of Inductors, Chokes & Coils. The product is identified by the Mouser number 70-ICM1206ER900M and is classified as a new product from the manufacturer.
Common Mode Chokes Replacement Considerations
Publicly confirmed substitute part numbers are not available in the provided documentation. Consult the manufacturer's datasheet or authorized distributors for equivalent alternatives.
