ICM2020ER142R

$1.80

Description：CMC 2.8A 2LN 1.4 KOHM SMD
Series：ICM-2020
Mfr：Vishay Dale
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:e1e1bcfd4020 Category: Common Mode Chokes Brand: Vishay Dale

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

ICM2020ER142R is listed in the Common Mode Chokes range at ChipApex. The manufacturer field lists Vishay Dale. Its product description is CMC 2.8A 2LN 1.4 KOHM SMD. Review the specifications below when checking this part for your BOM.

Common Mode Chokes specifications for ICM2020ER142R

Description：CMC 2.8A 2LN 1.4 KOHM SMD
Series：ICM-2020
Mfr：Vishay Dale
Package：Tape & Reel (TR),Cut Tape (CT)
Filter Type：Power Line
Number of Lines：2
Current Rating (Max)：2.8A
DC Resistance (DCR) (Max)：38mOhm
Voltage Rating - DC：80V
Voltage Rating - AC：-
Operating Temperature：-40°C ~ 125°C
Ratings：-
Approval Agency：-
Features：-
Mounting Type：Surface Mount
Size / Dimension：0.217" L x 0.217" W (5.50mm x 5.50mm)
Height (Max)：0.138" (3.50mm)
Package / Case：Horizontal, 4 PC Pad
Inductance @ Frequency：-
Impedance @ Frequency：1.4 kOhms @ 100 MHz
Qualification：-
Grade：-

Common Mode Chokes datasheet and documents for ICM2020ER142R

ICM2020ER142R

Common Mode Chokes Overview

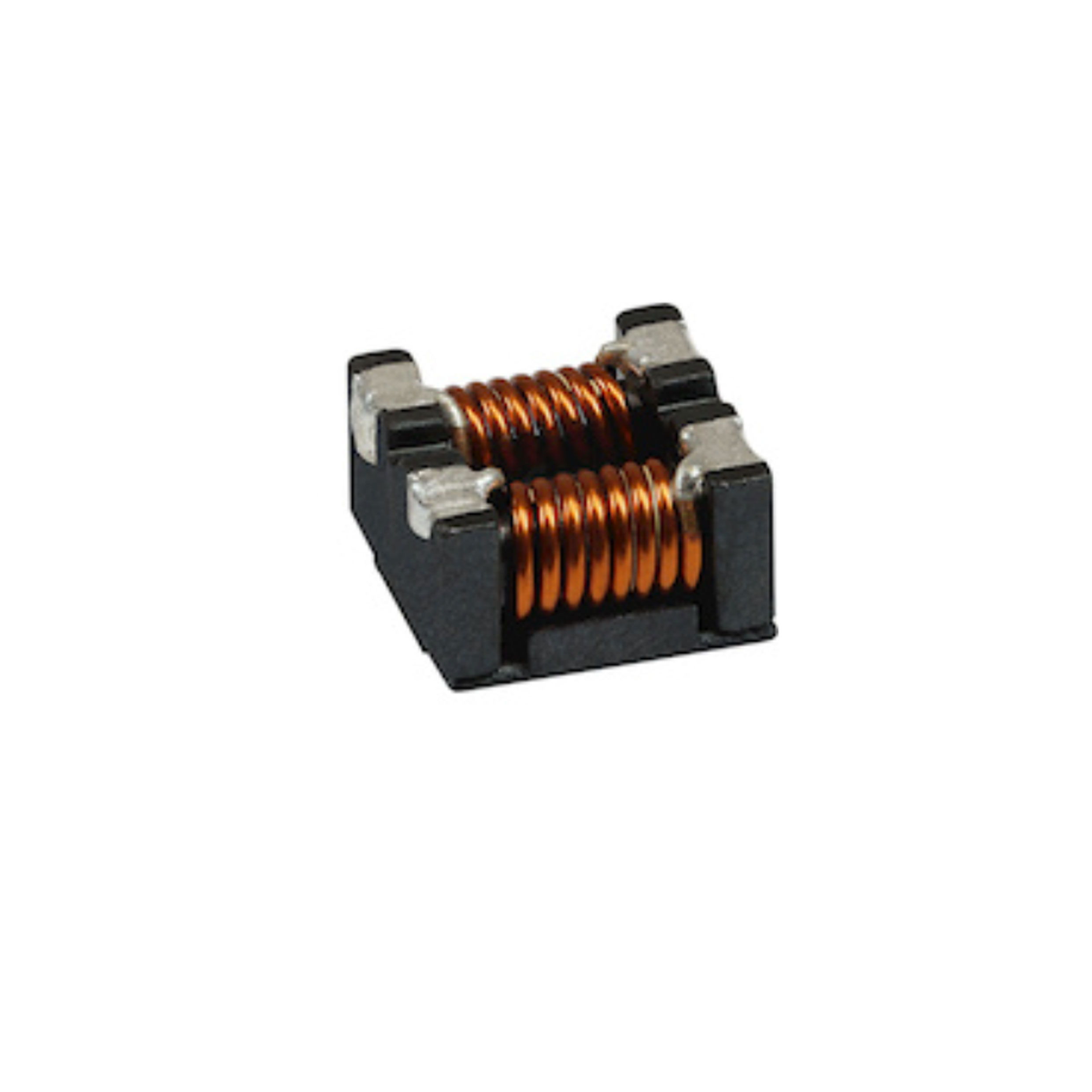

The Vishay Dale ICM2020ER142R is a surface-mount common mode choke designed for DC power line noise suppression. It features a 1.4 kOhms impedance at 100 MHz and supports a maximum DC current of 2.8 A with a maximum DC resistance of 38 mOhms. The component operates within a temperature range of -40°C to +125°C and utilizes a 2020 package size measuring 2.0 mm by 2.0 mm.

Common Mode Chokes Feature Summary

Provides effective noise suppression for DC power lines
Surface-mount construction for automated assembly
High current handling capability up to 2.8 A

Common Mode Chokes Applications

DC power line filtering
Noise suppression in electronic circuits
Common mode interference reduction

Common Mode Chokes Procurement Notes

Verify the specific impedance value of 1.4 kOhms at 100 MHz against circuit requirements. Confirm the 2.8 A current rating and 38 mOhms DCR meet thermal and electrical constraints. Ensure the 2020 footprint matches the PCB layout. Check RoHS compliance status for regulatory adherence.

Common Mode Chokes Selection Notes

Select this component when high-frequency noise suppression is required on DC lines. The 2.8 A rating suits moderate current applications. Consider the 2020 package dimensions for space-constrained designs. Verify compatibility with peak transient currents to prevent saturation or overheating during operation.

Common Mode Chokes Part Context

This part belongs to the Vishay Dale ICM series of common mode chokes. These devices are engineered for surface-mount technology (SMT) applications. The series offers various impedance and current ratings to suit different power line filtering needs across industrial and consumer electronics.
