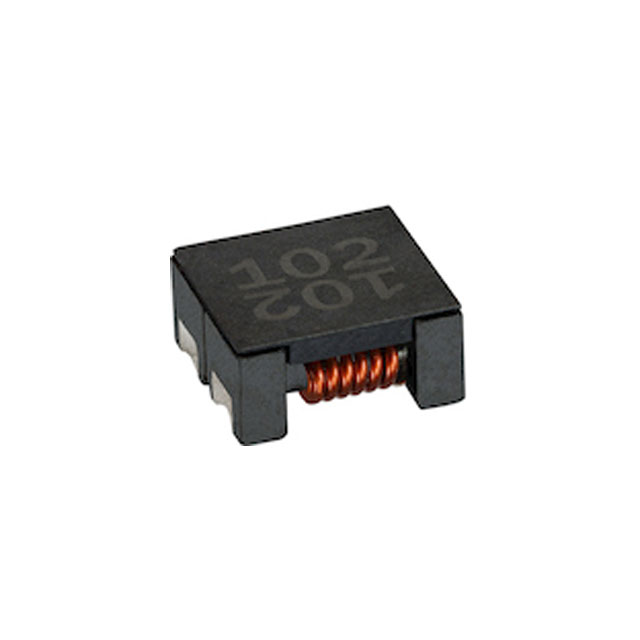

ICM5050ER701N is listed in the Common Mode Chokes range at ChipApex. The manufacturer field lists Vishay Dale. Its product description is CMC 9A 2LN 700 OHM SURFACE MOUNT. Review the specifications below when checking this part for your BOM.
Common Mode Chokes specifications for ICM5050ER701N
- Description：CMC 9A 2LN 700 OHM SURFACE MOUNT
- Series：ICM5050
- Mfr：Vishay Dale
- Package：Tape & Reel (TR),Cut Tape (CT)
- Filter Type：Power Line
- Number of Lines：2
- Current Rating (Max)：9A
- DC Resistance (DCR) (Max)：5mOhm
- Voltage Rating - DC：80V
- Voltage Rating - AC：-
- Operating Temperature：-40°C ~ 125°C
- Ratings：-
- Approval Agency：-
- Features：-
- Mounting Type：Surface Mount
- Size / Dimension：0.472" L x 0.433" W (12.00mm x 11.00mm)
- Height (Max)：0.236" (6.00mm)
- Package / Case：Horizontal, 4 PC Pad
- Inductance @ Frequency：-
- Impedance @ Frequency：700 Ohms @ 100 MHz
- Qualification：-
- Grade：-
Common Mode Chokes datasheet and documents for ICM5050ER701N
Common Mode Chokes Overview
The Vishay Dale ICM5050ER701N is a single-channel common mode filter choke from the ICM-5050 series, designed for surface mount PCB integration. It features a ferrite core and offers an impedance of 700 Ohms with a tolerance of 30%. The component operates within a temperature range of -40°C to +125°C and has a maximum DC resistance of 8 milliohms.
Common Mode Chokes Feature Summary
- Single-channel configuration for common mode noise suppression
- Surface mount construction for automated PCB assembly
- Ferrite core material for effective high-frequency filtering
Common Mode Chokes Applications
- DC/DC power supplies
- Automotive electronics
- Industrial control systems
Common Mode Chokes Procurement Notes
Verify the specific impedance value and tolerance against the official datasheet before procurement. Confirm that the package dimensions and pinout match the design requirements. Ensure the operating temperature range meets the environmental conditions of the target application. Check for RoHS compliance status if required by regulatory standards.
Common Mode Chokes Selection Notes
Select this component when a single-channel solution is sufficient for noise reduction in compact designs. Consider the 700 Ohm impedance level for the specific frequency range of interference to be suppressed. Evaluate the low DC resistance to minimize power loss in the signal path. Compare physical size constraints against available board space.
Common Mode Chokes Part Context
This part belongs to the Vishay Dale ICM-5050 series of common mode chokes. These components are engineered for high-performance filtering in space-constrained applications. The series utilizes advanced ferrite materials to provide stable inductance characteristics across varying temperatures and frequencies.
Common Mode Chokes FAQ
What is the impedance tolerance of the ICM5050ER701N?
The impedance tolerance is specified as 30%.
Is the ICM5050ER701N shielded?
Information regarding shielding is not explicitly confirmed in the provided specifications; consult the datasheet for detailed magnetic shielding properties.
