ICM6050ER301N

Common Mode Chokes Overview

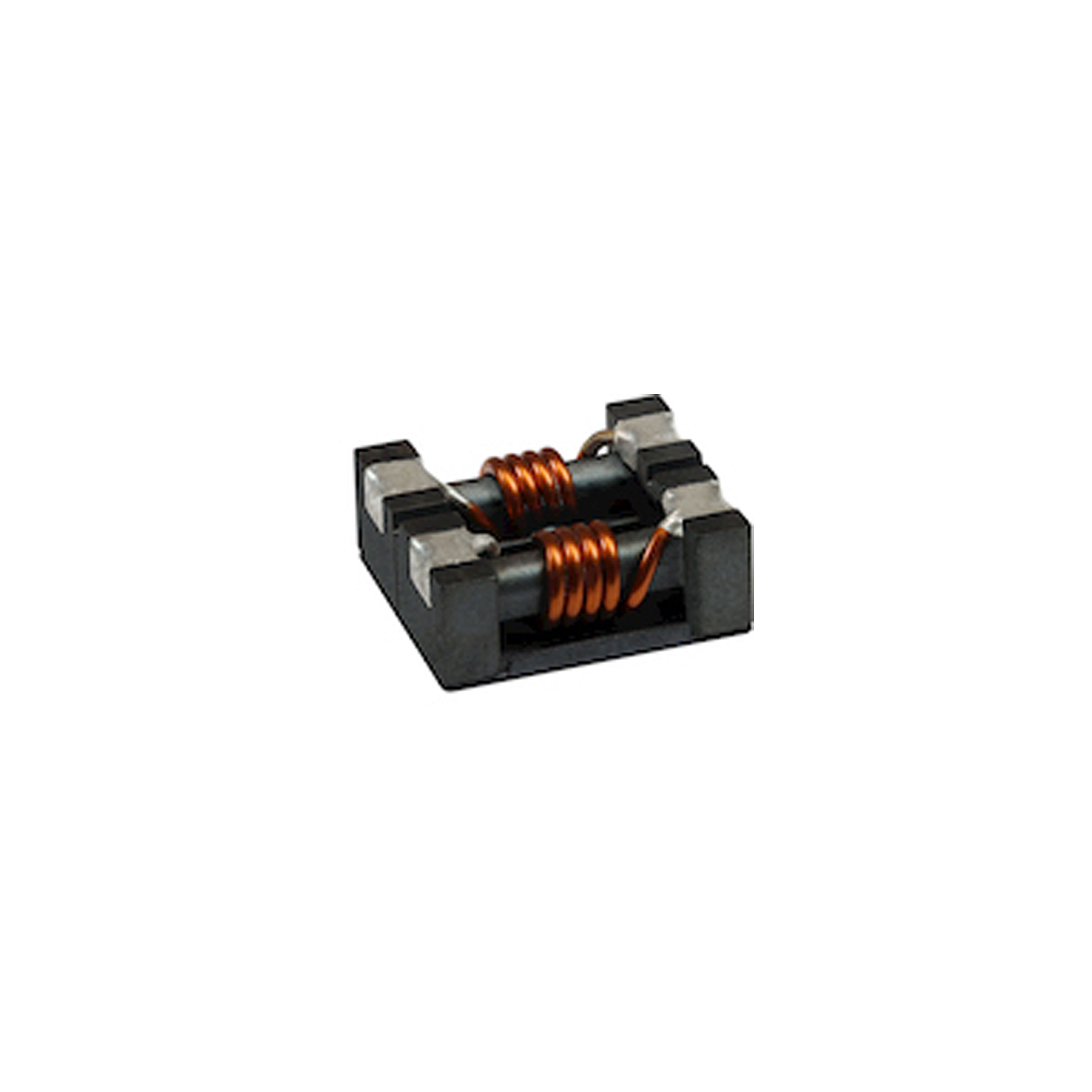

The Vishay Dale ICM6050ER301N is a wire-wound ferrite common mode choke designed for surface mount technology. It features a single channel configuration with an impedance of 300 Ohms at a test frequency of 100 MHz and a tolerance of 20%. The component operates within a temperature range of -40°C to +125°C and has a maximum DC resistance of 4 mOhms. Housed in a 6050 (15mm x 13mm x 6mm) unshielded package, it supports PCB mounting via SMD/SMT termination.

Common Mode Chokes Feature Summary

• Wire-wound ferrite construction for high current handling capabilities
• Compact surface mount footprint reduces board space requirements
• Low DC resistance minimizes power loss in power supply circuits

Common Mode Chokes Applications

• DC/DC Power Supplies
• LCD Displays
• Automotive Electronics

Common Mode Chokes Procurement Notes

Verify the specific impedance value against the datasheet, as suffixes may indicate variations. Confirm RoHS compliance status and lead times directly with authorized distributors. Ensure the 6050 package dimensions match the target PCB layout constraints before finalizing procurement orders.

Common Mode Chokes Selection Notes

Select this component when high current capacity and low DC resistance are required in a compact form factor. The 300 Ohm impedance at 100 MHz targets specific EMI noise frequencies. Compare thermal performance and saturation characteristics against alternative chokes in similar packages to ensure compatibility with the system's electrical requirements.

Common Mode Chokes Part Context

This part belongs to the Vishay Dale ICM6050 series of high-current common mode chokes. These devices utilize ferrite cores and wire-winding techniques to achieve superior performance compared to larger toroidal alternatives. The series is engineered to replace bulkier components while maintaining effective noise suppression in demanding electronic environments.

Common Mode Chokes Replacement Considerations

Check for direct substitutes within the ICM6050 series with different impedance values if filtering requirements change. Verify that any replacement maintains the same 6050 package dimensions and thermal ratings to ensure mechanical fit and operational reliability without redesigning the PCB.

Common Mode Chokes FAQ

What is the operating voltage rating for the ICM6050ER301N?

The device is rated for a 125VDC operating voltage.

Is the ICM6050ER301N shielded?

No, the component is unshielded.
