ID-0642H

Power Line Filter Modules Overview

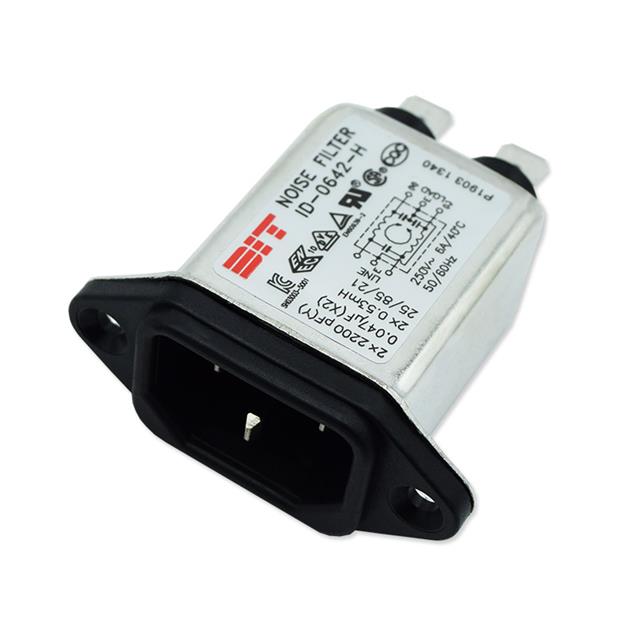

The ID-0642H is a single-phase EMC/EMI line filter module manufactured by DIT. It features a metal-cased miniature design intended for high-performance noise suppression. The unit supports an operating voltage of 250V and a current rating of 6A at frequencies between 50Hz and 60Hz. It utilizes a single-stage filtering architecture and connects via quick-connect terminals with an IEC 320-C14 interface.

Power Line Filter Modules Feature Summary

• Metal cased miniature type construction
• High performance noise suppression
• Single stage filtering architecture

Power Line Filter Modules Applications

• Products requiring FCC part 15 regulation compliance
• Single phase power line filtering applications
• EMC/EMI suppression in electronic equipment

Power Line Filter Modules Procurement Notes

Verify the specific datasheet from Dong Il Technology Ltd to confirm exact dimensional tolerances, leakage current limits, and insulation ratings before integration. Ensure the IEC 320-C14 mating connector compatibility matches the target system requirements. Confirm that the quick-connect terminal specifications align with the wiring harness design.

Power Line Filter Modules Selection Notes

Select this component when a compact, metal-shielded EMI filter is required for single-phase AC mains input. The 6A rating suits moderate power loads. Consider the physical size constraints due to its miniature classification. Verify regulatory compliance needs against FCC Part 15 standards prior to final selection.

Power Line Filter Modules Part Context

This component belongs to the DIT power line filter module series. These modules are designed to mitigate electromagnetic interference in single-phase electrical systems. The manufacturer focuses on providing compliant filtering solutions for consumer and industrial electronics requiring strict emission control.

Power Line Filter Modules Replacement Considerations

Cross-reference with other single-phase 6A 250V EMI filters featuring IEC 320-C14 inputs and quick-connect outputs. Ensure equivalent attenuation characteristics and physical footprint compatibility during substitution.
