IDCP2218ER100M01

Fixed Inductors Overview

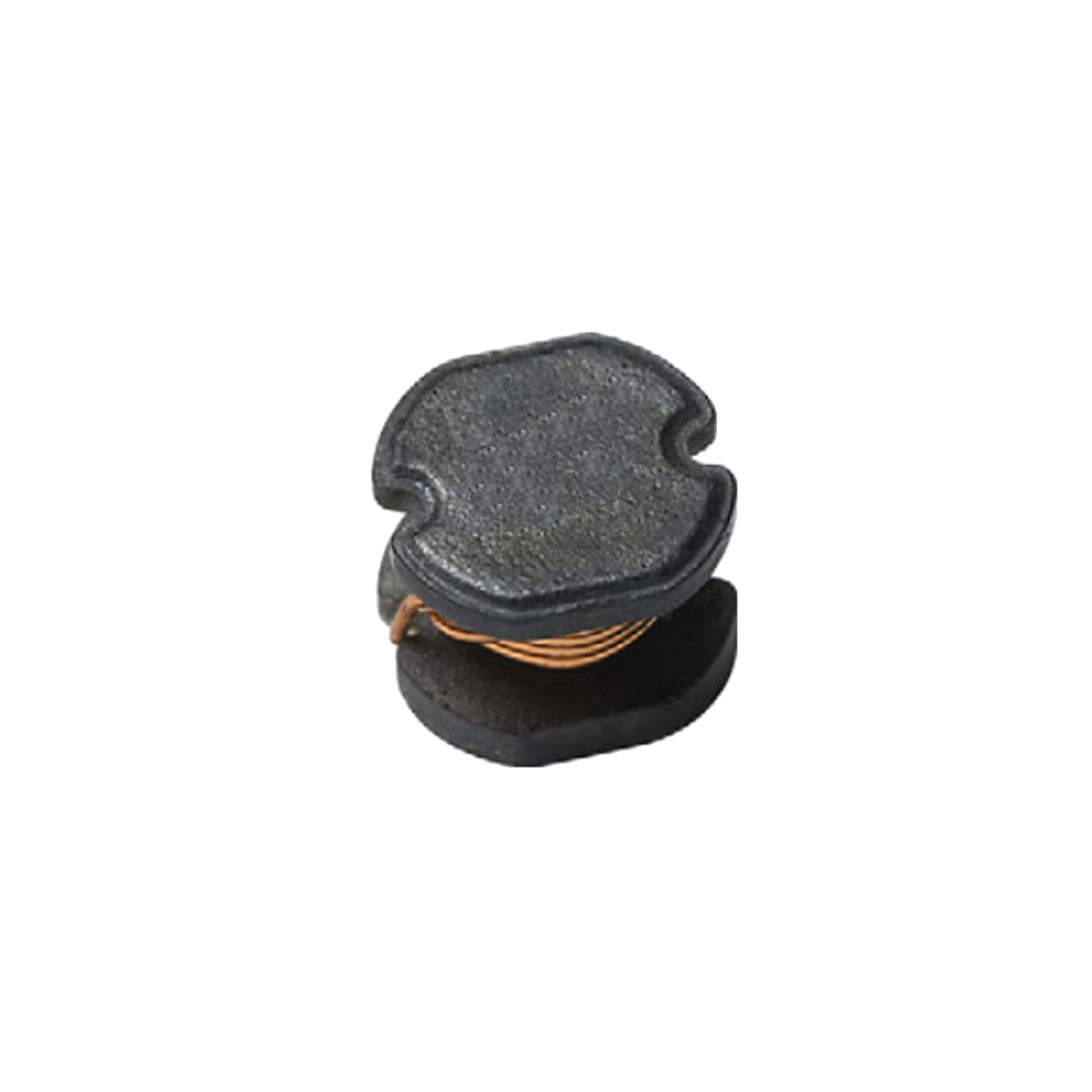

The IDCP2218ER100M01 is a surface-mount power inductor from Vishay Dale, utilizing a wirewound drumcore construction with ferrite core material. It features an unshielded design suitable for PCB mounting applications. The component provides a fixed inductance of 10 µH with a tolerance of ±20%. It supports a maximum DC current of 1.5 A and has a maximum DC resistance of 100 mOhms. The operating temperature range spans from -40°C to +105°C. Physical dimensions are 5.8 mm in length, 5.2 mm in width, and 4.5 mm in height.

Fixed Inductors Feature Summary

• Wirewound drumcore construction for stable inductance characteristics
• Unshielded design allowing flexible placement on printed circuit boards
• Ferrite core material optimized for power supply filtering applications

Fixed Inductors Applications

• DC/DC converter output filtering
• Power supply input stages
• General purpose power electronics circuits

Fixed Inductors Procurement Notes

Verify the specific ordering suffix and manufacturer part number against official Vishay documentation to ensure correct component selection. Confirm availability status through authorized distributors as supply conditions may vary. Check RoHS compliance details and lead times directly with suppliers prior to procurement. Ensure storage and handling procedures align with manufacturer guidelines for surface-mount components.

Fixed Inductors Selection Notes

Select this component when a 10 µH inductance value is required with a 1.5 A current rating. Consider the unshielded nature for applications where magnetic interference coupling is manageable or requires specific orientation. Verify that the 100 mOhm DC resistance meets efficiency requirements for the target power stage. Ensure the physical footprint fits within the available PCB area constraints.

Fixed Inductors Part Context

This part belongs to the IDCP-2218-01 series of power inductors designed for surface-mount technology. The series offers various inductance values tailored for different power management needs. Vishay Dale manufactures these components using standardized processes to ensure consistency across the product line. The IDCP2218ER100M01 represents one specific configuration within this broader family of electronic passive components.

Fixed Inductors Replacement Considerations

Consult official Vishay documentation for confirmed substitute part numbers. Cross-reference electrical parameters such as inductance, current rating, and DC resistance when evaluating alternatives. Ensure mechanical compatibility including package dimensions and terminal types for direct replacement scenarios.
