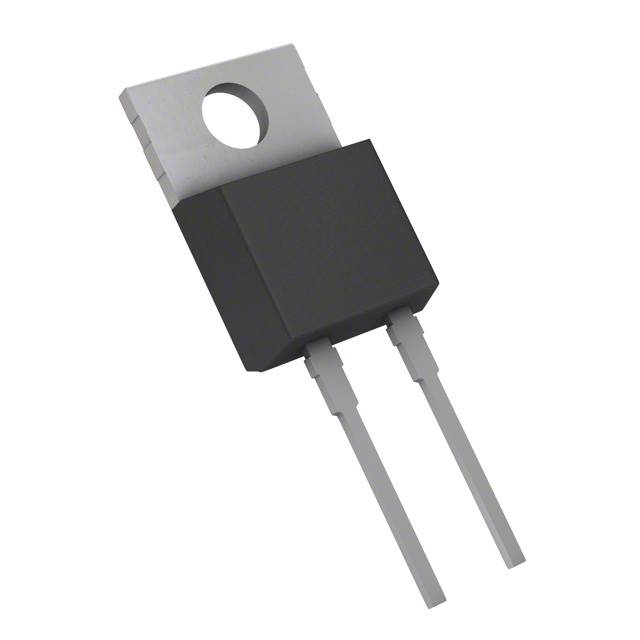

IDP15E65D1XKSA1

$0.86

Description：DIODE STANDARD 650V 15A TO2202
Series：-
Mfr：Infineon Technologies
Package：Tube

SKU:3844b4d3f571 Category: Single Diodes Brand: Infineon Technologies

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

IDP15E65D1XKSA1 is listed in the Single Diodes range at ChipApex. The manufacturer field lists Infineon Technologies. Its product description is DIODE STANDARD 650V 15A TO2202. Review the specifications below when checking this part for your BOM.

Single Diodes specifications for IDP15E65D1XKSA1

Description：DIODE STANDARD 650V 15A TO2202
Series：-
Mfr：Infineon Technologies
Package：Tube
Technology：Standard
Voltage - DC Reverse (Vr) (Max)：650 V
Current - Average Rectified (Io)：15A
Voltage - Forward (Vf) (Max) @ If：1.7 V @ 15 A
Speed：Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)：114 ns
Current - Reverse Leakage @ Vr：40 µA @ 650 V
Capacitance @ Vr, F：-
Mounting Type：Through Hole
Package / Case：TO-220-2
Supplier Device Package：TO-220-2
Operating Temperature - Junction：-40°C ~ 175°C
Grade：-
Qualification：-

Single Diodes datasheet and documents for IDP15E65D1XKSA1

IDP15E65D1XKSA1

Single Diodes Overview

The IDP15E65D1XKSA1 is a single switching diode from Infineon Technologies, housed in a TO-220-2 through-hole package. It features a peak reverse voltage of 650 V and an average forward current rating of 30 A. The device supports a maximum surge current of 120 A with a power dissipation capacity of 92 W. Electrical characteristics include a forward voltage of 1.35 V, a reverse leakage current of 40 uA at 650 V, and a recovery time of 71 ns. It operates within a junction temperature range of -40 C to +175 C.

Single Diodes Feature Summary

Designed for rapid switching applications within the IGBT products series.
Capable of handling high surge currents up to 120 A.

Single Diodes Applications

IGBT freewheeling diodes
Induction heating systems
High-frequency inverters

Single Diodes Procurement Notes

Verify the specific ordering suffix XKSA1 against official Infineon documentation to confirm tape-and-reel or tube packaging details. Ensure the component meets RoHS requirements as specified in the manufacturer's datasheet. Cross-reference the Mouser part number 726-IDP15E65D1XKSA1 with the original manufacturer data sheet to validate all electrical parameters before integration into designs.

Single Diodes Selection Notes

Select this component when a single diode configuration with 30 A continuous current and 650 V blocking capability is required. The TO-220-2 package suits through-hole mounting for applications needing robust thermal management. Consider the 71 ns recovery time for switching frequency constraints and ensure the design accommodates the 92 W power dissipation limit under expected operating conditions.

Single Diodes Part Context

This part belongs to the IDP15E65 series of fast recovery diodes manufactured by Infineon Technologies. It is categorized under small signal switching diodes and general-purpose power diodes. The component is distinct from similar parts like IDW15E65D2 due to its specific recovery time and forward voltage characteristics within the same voltage class.
