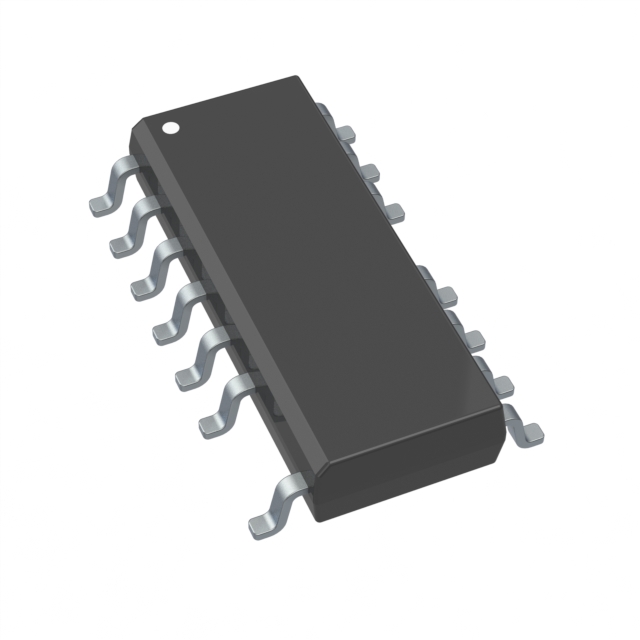

IDP2309XUMA1

Overview

The IDP2309XUMA1 is a Power Factor Correction (PFC) integrated circuit manufactured by Infineon Technologies. It is designed for medium-power applications, specifically targeting switching mode power supplies (SMPS) used in television sets and personal computers. The component functions as a dedicated PFC controller to improve power efficiency and compliance with regulatory standards in consumer electronics.

Feature Summary

• Designed for medium-power AC-DC conversion applications
• Optimized for use in television and PC power supply units
• Integrated control architecture for power factor correction

Applications

• Television set power supplies
• Personal computer switching mode power supplies
• Medium-power AC-DC converters

Procurement Notes

Verify the specific datasheet revision and ordering suffix when sourcing this component. Confirm that the package type and thermal requirements match your design constraints. Check current availability status as supply chain conditions may vary. Ensure compatibility with your target SMPS topology before procurement.

Selection Notes

Select this IC for medium-power PFC stages where high efficiency is required. It is suitable for designs targeting consumer electronics like TVs and PCs. Consider its integration level against discrete solutions to reduce bill of materials. Evaluate thermal performance within the intended enclosure environment.

Part Context

This part belongs to Infineon's portfolio of power management components focused on AC-DC conversion. It addresses the need for efficient power factor correction in standard consumer electronic devices. The device complements other power stage components in complete SMPS designs.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Consult official Infineon resources or authorized distributors for potential alternative components if this specific model is unavailable.
