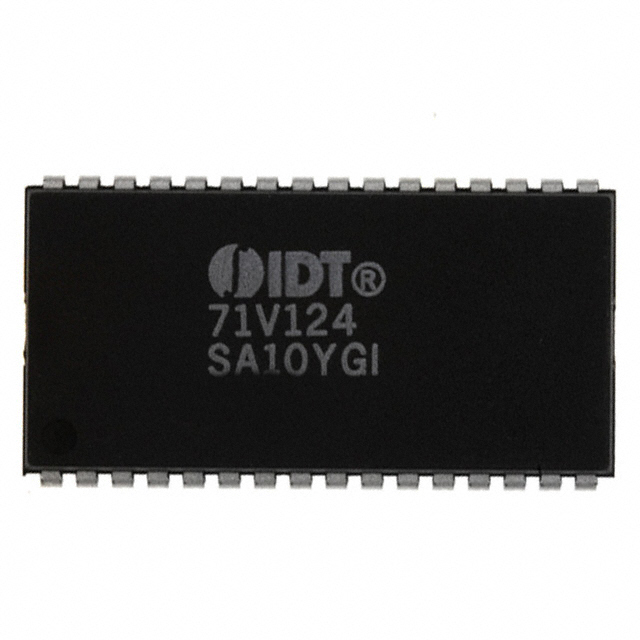

IDT71V124SA10YGI8 is listed in the Memory IC range at ChipApex. The manufacturer field lists Renesas Electronics Corporation. Its product description is IC SRAM 1MBIT PARALLEL 32SOJ. Review the specifications below when checking this part for your BOM.
Memory IC specifications for IDT71V124SA10YGI8
- Description：IC SRAM 1MBIT PARALLEL 32SOJ
- Series：-
- Mfr：Renesas Electronics Corporation
- Package：Tape & Reel (TR),Cut Tape (CT)
- Memory Type：Volatile
- Memory Format：SRAM
- Technology：SRAM - Asynchronous
- Memory Size：1Mbit
- Memory Organization：128K x 8
- Memory Interface：Parallel
- Clock Frequency：-
- Write Cycle Time - Word, Page：10ns
- Voltage - Supply：3.15V ~ 3.6V
- Operating Temperature：-40°C ~ 85°C (TA)
- Mounting Type：Surface Mount
- Package / Case：32-BSOJ (0.400", 10.16mm Width)
- Supplier Device Package：32-SOJ
- Access Time：10 ns
- Grade：-
- Qualification：-
Memory IC datasheet and documents for IDT71V124SA10YGI8
Memory IC Overview
The IDT71V124SA10YGI8 is a 1 Megabit (128K x 8) high-speed CMOS static RAM. It features a JEDEC center power/GND pinout to reduce noise and improve system performance. The device operates from a single 3.3V supply with LVTTL-compatible inputs and outputs. It provides an address access time of 10 ns and a read cycle time of 10 ns. The component supports commercial temperature ranges from 0°C to +70°C.
Memory IC Feature Summary
- JEDEC revolutionary pinout with center power and ground for reduced noise generation
- LVTTL-compatible bidirectional inputs and outputs
- Fully static asynchronous circuitry requiring no clocks or refreshes
- Low power consumption via chip deselect
Memory IC Applications
- High-speed memory applications
- Industrial equipment
- Consumer electronics
- Telecommunications systems
Memory IC Procurement Notes
Verify the exact suffix configuration against official Renesas documentation, as ordering codes define specific speed grades, package types, and temperature ranges. Confirm current availability status directly with authorized distributors, as this component may be subject to discontinuation notices or production changes documented in official Product Change Notices.
Memory IC Selection Notes
Select this part when a 128K x 8 organization is required with a 10 ns access speed. Ensure the design utilizes a single 3.3V supply and accommodates the 32-pin SOJ package dimensions. Verify that the application environment falls within the specified commercial operating temperature range of 0°C to +70°C.
Memory IC Part Context
This component belongs to the IDT71V124 family of 3.3V CMOS Static Random Access Memories. The family offers various speed grades and package options, including TSOP Type II and different SOJ sizes. The 'SA' designation indicates the specific power and speed characteristics associated with this series.
Memory IC Replacement Considerations
Consult official manufacturer documentation for confirmed substitute part numbers. Cross-referencing should verify identical memory organization, voltage requirements, and interface compatibility before implementation.
