IDT74FCT823CTSOG

Overview

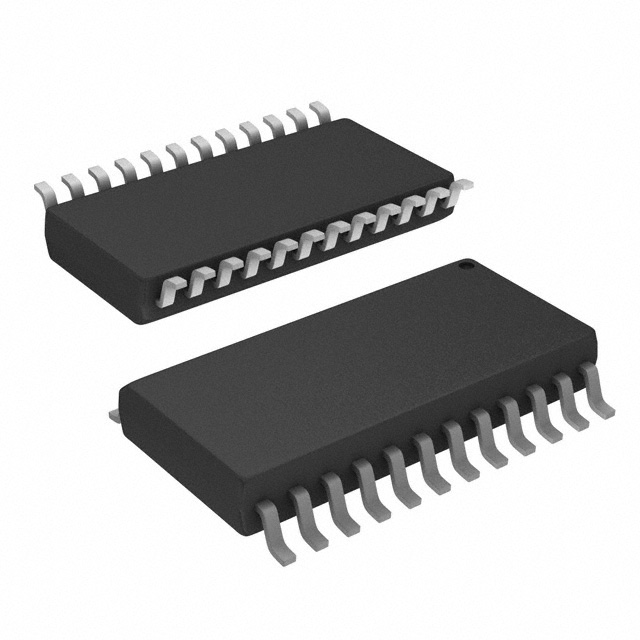

The IDT74FCT823CTSOG is a CMOS octal D-type flip-flop manufactured by Renesas Electronics. It features positive edge triggering and includes an asynchronous active-low master reset input. The device operates within a supply voltage range of 4.5 V to 5.5 V, with a maximum clock frequency of 10 MHz. Propagation delay is specified at 6.2 ns. It provides high drive capability with low-level output current of 48 mA and high-level output current of -15 mA. The component is housed in a 20-pin SOIC package and supports operation from -40°C to +85°C.

Feature Summary

• Octal D-type flip-flop configuration with positive edge triggering
• Asynchronous active-low master reset functionality
• High drive strength outputs for robust signal integrity
• CMOS technology ensuring low static power consumption

Applications

• Parallel data storage and buffering in digital systems
• Shift register implementations requiring high drive capability
• Timing control circuits utilizing master reset synchronization
• Interface logic between microprocessors and peripheral devices

Procurement Notes

Verify the specific suffix 'CTSOG' against the manufacturer's official datasheet to confirm pinout compatibility and package dimensions. Ensure the procurement channel sources genuine Renesas or IDT branded components to guarantee electrical parameter compliance. Cross-reference the RoHS status and lead times directly with authorized distributors prior to ordering.

Selection Notes

Select this component when an octal D-flip-flop with integrated master reset is required for 5V logic applications. The high output drive current makes it suitable for driving multiple loads or long traces without external buffers. Consider the 20-pin SOIC package constraints and thermal requirements during PCB layout design to ensure reliable operation across the industrial temperature range.

Part Context

This part belongs to the 74FCT logic family, designed for high-speed CMOS applications compatible with TTL inputs. It serves as a standard solution for parallel data latching in computer peripherals and communication interfaces. The IDT branding indicates its origin from Integrated Device Technology, now part of Renesas Electronics, maintaining legacy specifications for system upgrades.

Replacement Considerations

Direct substitutes include the 74FCT823ATSOCT and 74FCT823BTQ. Verify that replacement parts maintain identical pin configurations and electrical characteristics, particularly the master reset polarity and output drive strengths, before implementation.
