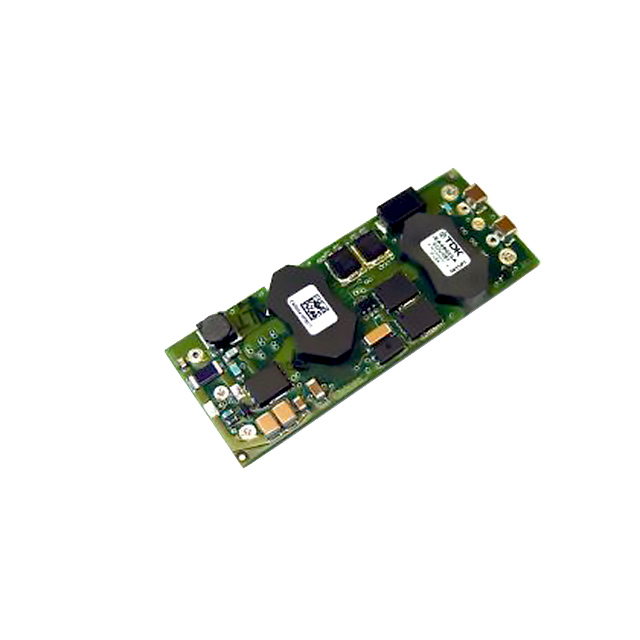

IEA48007A120V-001-R

IEA48007A120V-001-R is listed in the DC DC Converters range at ChipApex. The manufacturer field lists TDK-Lambda. Its product description is DC DC CONVERTER 12V 78W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for IEA48007A120V-001-R

• Description：DC DC CONVERTER 12V 78W
• Series：iEA (75W)
• Mfr：TDK-Lambda
• Package：Bulk
• Type：Isolated Module
• Number of Outputs：1
• Voltage - Input (Min)：36V
• Voltage - Input (Max)：75V
• Voltage - Output 1：12V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：6.5A
• Power (Watts)：78 W
• Voltage - Isolation：1.5 kV
• Applications：ITE (Commercial)
• Features：Remote On/Off, OCP, OVP
• Operating Temperature：-40°C ~ 125°C
• Efficiency：91%
• Mounting Type：Through Hole
• Package / Case：8-DIP Module, 1/8 Brick
• Size / Dimension：2.30" L x 0.90" W x 0.35" H (58.4mm x 22.9mm x 8.9mm)
• Supplier Device Package：-
• Control Features：Enable, Active Low
• Approval Agency：-
• Standard Number：-
• Grade：-
• Qualification：-

DC DC Converters datasheet and documents for IEA48007A120V-001-R
