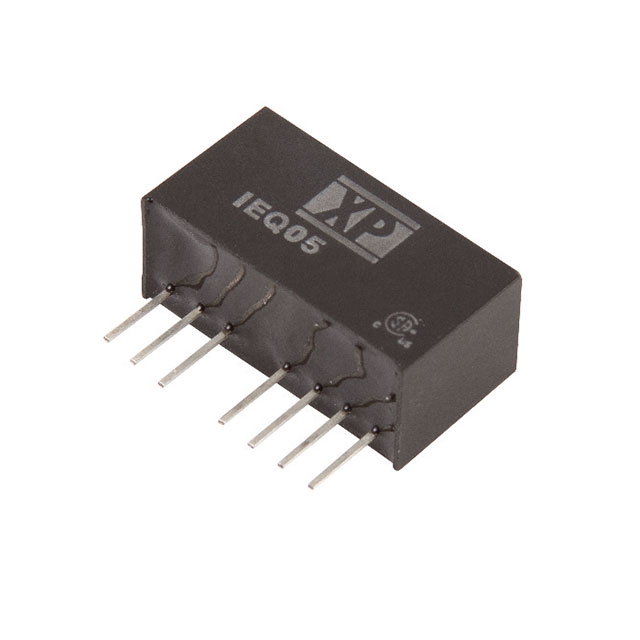

IEQ0548S3V3

IEQ0548S3V3 is listed in the DC DC Converters range at ChipApex. The manufacturer field lists XP Power. Its product description is DC DC CONVERTER 3.3V 5W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for IEQ0548S3V3

• Description：DC DC CONVERTER 3.3V 5W
• Series：IEQ05 (5W)
• Mfr：XP Power
• Package：Tube
• Type：Isolated Module
• Number of Outputs：1
• Voltage - Input (Min)：18V
• Voltage - Input (Max)：75V
• Voltage - Output 1：3.3V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：1.08A
• Power (Watts)：5 W
• Voltage - Isolation：1.5 kV
• Applications：ITE (Commercial)
• Features：Remote On/Off, SCP
• Operating Temperature：-40°C ~ 90°C
• Efficiency：76%
• Mounting Type：Through Hole
• Package / Case：8-SIP Module, 7 Leads
• Size / Dimension：0.86" L x 0.37" W x 0.44" H (22.0mm x 9.5mm x 11.3mm)
• Supplier Device Package：8-SIP
• Control Features：Enable, Active Low
• Approval Agency：-
• Standard Number：62368-1
• Grade：-
• Qualification：-

DC DC Converters datasheet and documents for IEQ0548S3V3
