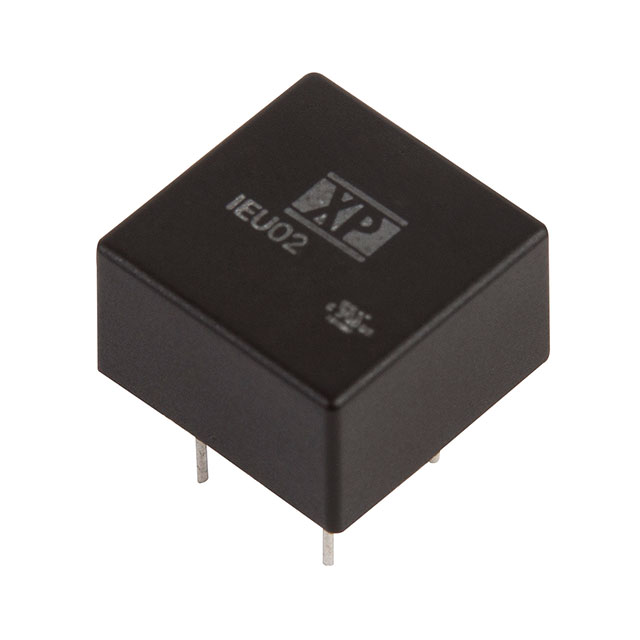

IEU0224D15

IEU0224D15 is listed in the DC DC Converters range at ChipApex. The manufacturer field lists XP Power. Its product description is DC DC CONVERTER +/-15V 2W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for IEU0224D15

• Description：DC DC CONVERTER +/-15V 2W
• Series：IEU02 (2W)
• Mfr：XP Power
• Package：Tube
• Type：Isolated Module
• Number of Outputs：2
• Voltage - Input (Min)：18V
• Voltage - Input (Max)：36V
• Voltage - Output 1：15V
• Voltage - Output 2：-15V
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：67mA, 67mA
• Power (Watts)：2 W
• Voltage - Isolation：1.5 kV
• Applications：ITE (Commercial)
• Features：OCP, SCP
• Operating Temperature：-40°C ~ 95°C (With Derating)
• Efficiency：86%
• Mounting Type：Through Hole
• Package / Case：8-DIP Module, 5 Leads
• Size / Dimension：0.55" L x 0.55" W x 0.31" H (14.0mm x 14.0mm x 8.0mm)
• Supplier Device Package：-
• Control Features：-
• Approval Agency：-
• Standard Number：62368-1
• Grade：-
• Qualification：-

DC DC Converters datasheet and documents for IEU0224D15
