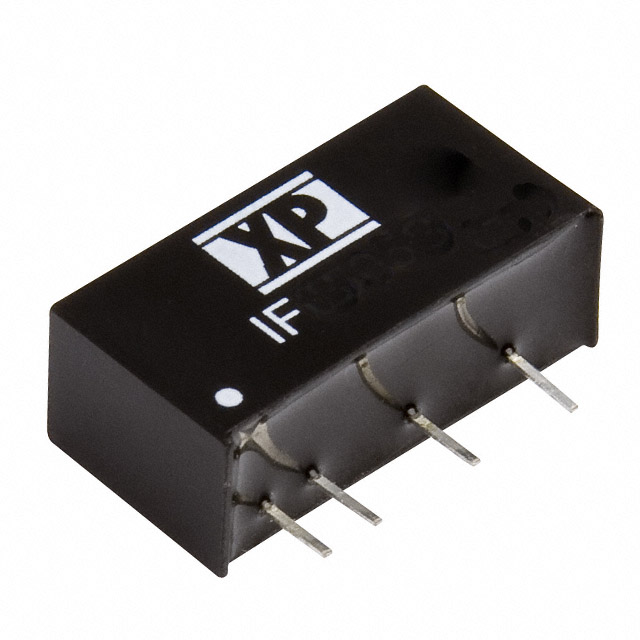

IF0509S is listed in the DC DC Converters range at ChipApex. The manufacturer field lists XP Power. Its product description is DC DC CONVERTER 9V 1W. Review the specifications below when checking this part for your BOM.
DC DC Converters specifications for IF0509S
- Description：DC DC CONVERTER 9V 1W
- Series：IF (1W)
- Mfr：XP Power
- Package：Tube
- Type：Isolated Module
- Number of Outputs：1
- Voltage - Input (Min)：4.5V
- Voltage - Input (Max)：5.5V
- Voltage - Output 1：9V
- Voltage - Output 2：-
- Voltage - Output 3：-
- Voltage - Output 4：-
- Current - Output (Max)：111mA
- Power (Watts)：1 W
- Voltage - Isolation：1 kV
- Applications：ITE (Commercial)
- Features：-
- Operating Temperature：-40°C ~ 85°C
- Efficiency：65%
- Mounting Type：Through Hole
- Package / Case：7-SIP Module, 6 Leads
- Size / Dimension：0.77" L x 0.28" W x 0.50" H (19.5mm x 7.2mm x 12.6mm)
- Supplier Device Package：-
- Control Features：-
- Approval Agency：-
- Standard Number：-
- Grade：-
- Qualification：-
DC DC Converters datasheet and documents for IF0509S
