IFLN1210BEER512N

Common Mode Chokes Overview

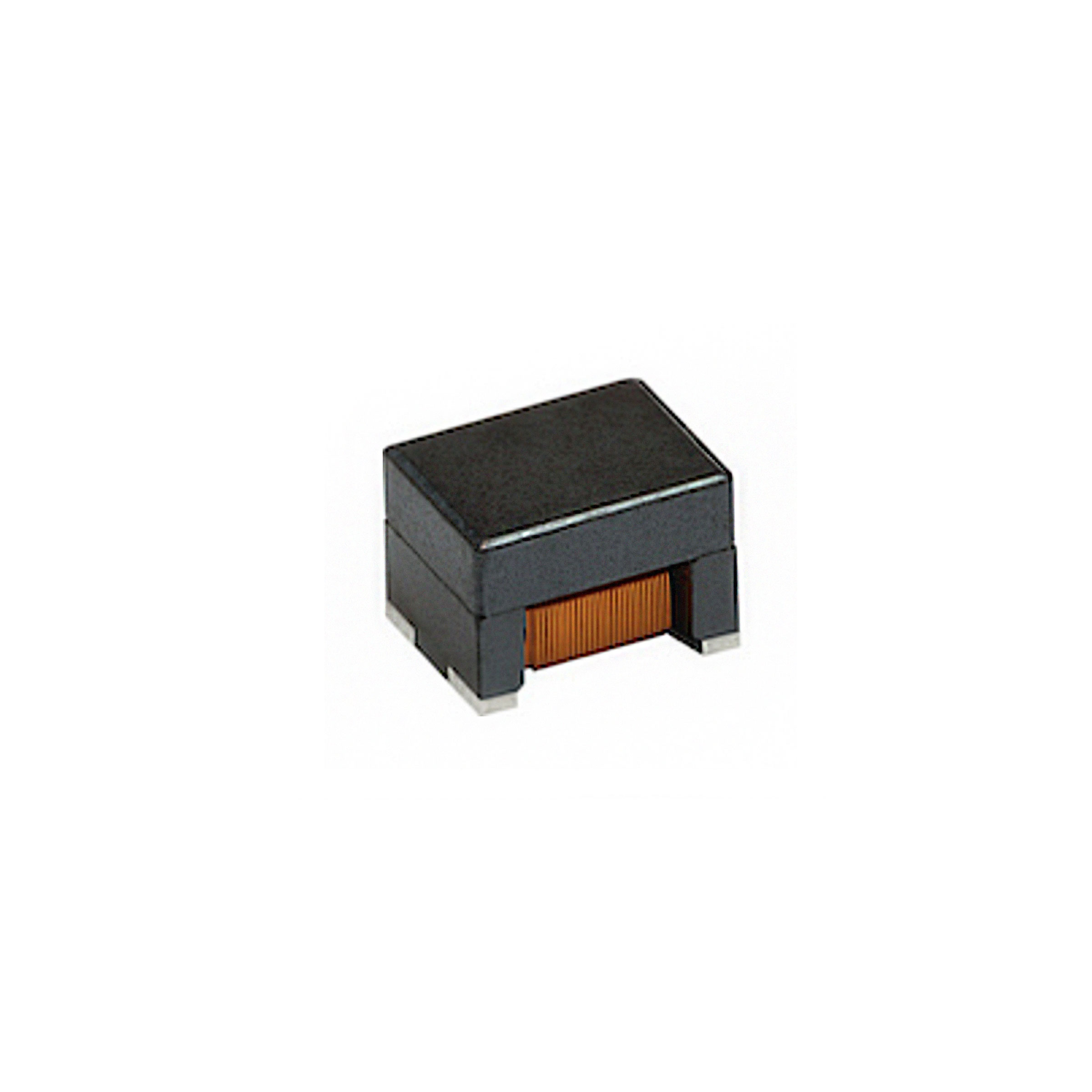

The Vishay Dale IFLN1210BEER512N is a surface-mount common mode filter choke designed for high-impedance noise suppression. It features a ferrite core and operates within a temperature range of -55°C to +150°C. Key electrical parameters include an inductance of 100 µH, an impedance of 5.1 kΩ at 10 MHz, and a maximum DC resistance of 1.5 Ω. The component supports a current rating of 150 mA and has a tolerance of -30% to +50%. It is housed in an unshielded SMD-4 package with dimensions of 3.2 mm x 2.5 mm x 2.5 mm.

Common Mode Chokes Feature Summary

• Provides effective common mode noise attenuation through high impedance characteristics at 10 MHz.
• Utilizes a ferrite core material for stable magnetic performance across a wide operating temperature range.
• Designed for surface mount technology integration with a compact unshielded form factor.

Common Mode Chokes Applications

• Signal line filtering in electronic circuits
• Noise suppression for data transmission interfaces
• Electromagnetic interference reduction in sensitive signal paths

Common Mode Chokes Procurement Notes

Verify the specific suffix 'ER' against the official Vishay datasheet to confirm reel packaging specifications and tape-and-reel dimensions. Ensure the -30% to +50% inductance tolerance aligns with circuit design requirements. Confirm RoHS compliance status via the manufacturer's latest documentation before finalizing procurement orders.

Common Mode Chokes Selection Notes

Select this component when high impedance at 10 MHz is required for common mode noise rejection. The 150 mA current rating limits suitability for high-power applications. Consider the unshielded construction for PCB layout spacing. Verify that the wide inductance tolerance meets the specific filtering precision needs of the target application.

Common Mode Chokes Part Context

This part belongs to the Vishay Dale IFLN series of common mode chokes. It shares the 1210 (3225 metric) footprint with other variants in the family but differs in electrical specifications such as impedance and inductance values. The series is characterized by its use of ferrite cores and suitability for surface mount assembly processes.

Common Mode Chokes FAQ

Is the IFLN1210BEER512N shielded?

No, the component is specified as unshielded in the product attributes.

What is the test frequency for the impedance specification?

The impedance of 5.1 kOhms is measured at a test frequency of 10 MHz.
