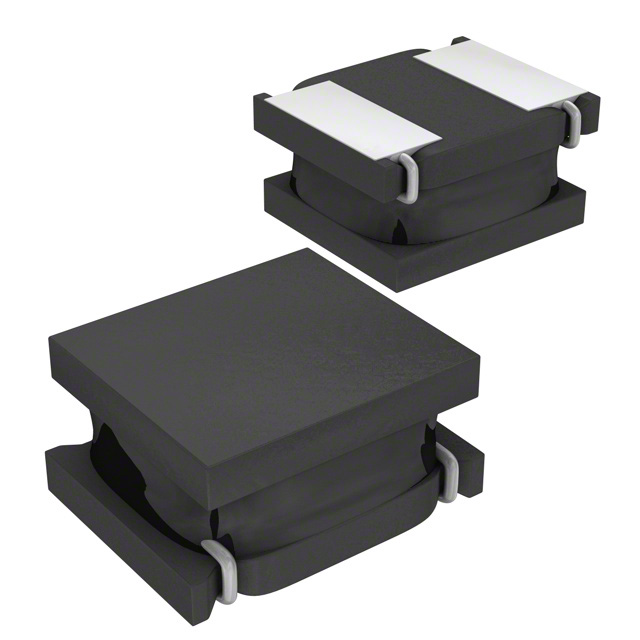

IFSC0806AZER100M01

$0.38

Description：FIXED IND 10UH 450MA 1.33OHM SMD
Series：IFSC-0806AZ-01
Mfr：Vishay Dale
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:9d1e4e2d3a23 Category: Fixed Inductors Brand: Vishay Dale

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

IFSC0806AZER100M01 is listed in the Fixed Inductors range at ChipApex. The manufacturer field lists Vishay Dale. Its product description is FIXED IND 10UH 450MA 1.33OHM SMD. Review the specifications below when checking this part for your BOM.

Fixed Inductors specifications for IFSC0806AZER100M01

Description：FIXED IND 10UH 450MA 1.33OHM SMD
Series：IFSC-0806AZ-01
Mfr：Vishay Dale
Package：Tape & Reel (TR),Cut Tape (CT)
Type：-
Material - Core：-
Inductance：10 µH
Tolerance：±20%
Current Rating (Amps)：450 mA
Current - Saturation (Isat)：620mA
Shielding：Shielded
DC Resistance (DCR)：1.33Ohm Max
Q @ Freq：-
Frequency - Self Resonant：-
Ratings：-
Operating Temperature：-55°C ~ 125°C
Inductance Frequency - Test：100 kHz
Mounting Type：Surface Mount
Package / Case：Nonstandard
Supplier Device Package：-
Size / Dimension：0.079" L x 0.063" W (2.00mm x 1.60mm)
Height - Seated (Max)：0.039" (1.00mm)
Features：-

Fixed Inductors datasheet and documents for IFSC0806AZER100M01

IFSC0806AZER100M01

Fixed Inductors Overview

The IFSC0806AZER100M01 is a shielded surface-mount power inductor from the Vishay Dale IFSC-0806AZ-01 series. It features a molded core and offers an inductance of 10 µH with a tolerance of ±20%. The component is rated for a maximum DC current of 450 mA and a saturation current (Isat) of 620 mA. Its maximum DC resistance (DCR) is 1.33 Ohms, measured at a test frequency of 100 kHz. The device operates within a temperature range of -55°C to +125°C and has physical dimensions of 2.00 mm x 1.60 mm x 1.00 mm.

Fixed Inductors Feature Summary

Shielded construction minimizes electromagnetic interference.
Molded core design ensures mechanical stability.
Suitable for high-current applications.

Fixed Inductors Applications

High current circuits
DC/DC power supplies

Fixed Inductors Procurement Notes

Verify the manufacturer part number IFSC0806AZER100M01 against official Vishay documentation to confirm specifications. Ensure compatibility with RoHS3 standards and check moisture sensitivity level MSL 1 requirements during storage and handling. Confirm package availability matches project needs.

Fixed Inductors Selection Notes

Select this component for designs requiring a compact 0806 footprint with specific 10 µH inductance. Evaluate the 450 mA continuous current rating and 620 mA saturation limit against peak load requirements. Consider the 1.33 Ohm DCR impact on efficiency and thermal performance in the target circuit topology.

Fixed Inductors Part Context

This part belongs to the IFSC-0806AZ-01 series of shielded power inductors. It utilizes a molded core technology designed for surface mount assembly. The series provides options for various inductance values within the 0806 package size, targeting space-constrained power management solutions.

Fixed Inductors Replacement Considerations

Consult Vishay Dale datasheets for alternative part numbers within the IFSC-0806AZ-01 series that match required inductance and current ratings. Verify pinout and dimensional compatibility before substitution.
