IFSC2020DEER220M01

Fixed Inductors Overview

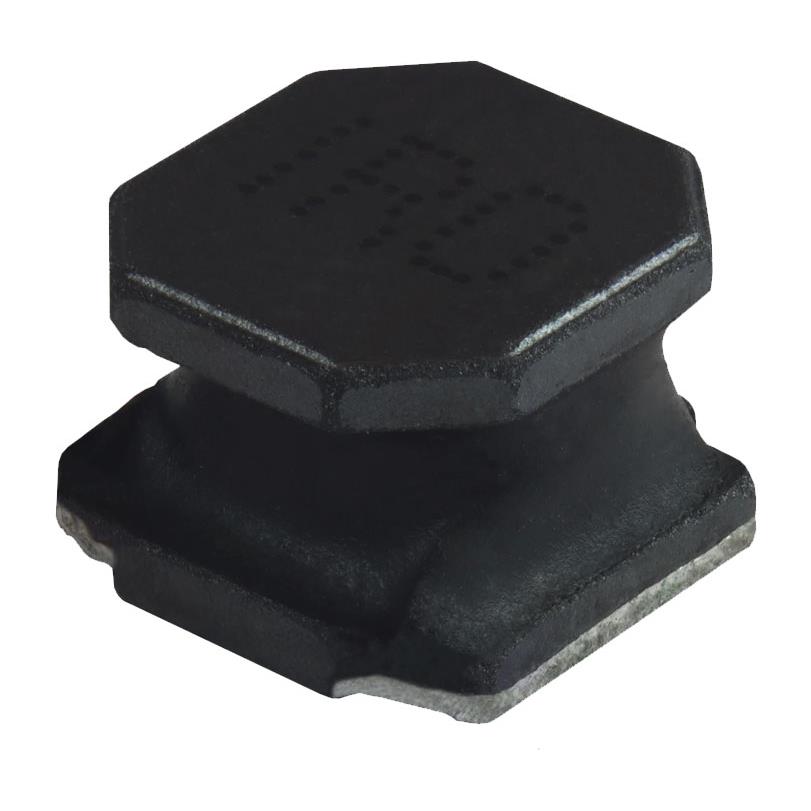

The IFSC2020DEER220M01 is a surface-mount power inductor from the Vishay Dale IFSC-2020DE-01 series. It features a semi-shielded, wirewound ferrite construction with an inductance of 22 µH and a tolerance of ±20%. The component has a maximum DC current rating of 1.5 A and a maximum DC resistance of 115 mΩ. Its physical dimensions are 6 mm x 6 mm x 4.5 mm (2424 metric package).

Fixed Inductors Feature Summary

• Semi-shielded wirewound ferrite construction for reduced electromagnetic interference.
• Designed for high-current applications within a compact surface-mount footprint.

Fixed Inductors Applications

• DC/DC converter circuits
• Power supply filtering
• General-purpose power electronics

Fixed Inductors Procurement Notes

Verify the specific part number against official Vishay documentation to confirm electrical parameters and mechanical dimensions. Ensure compatibility with peak current requirements and thermal management strategies for the target application environment.

Fixed Inductors Selection Notes

Select this component for designs requiring a balance between current handling capability and low profile. The 2424 package size suits space-constrained layouts, while the semi-shielded design offers moderate EMI control without the bulk of fully shielded alternatives.

Fixed Inductors Part Context

This part belongs to the IFSC-2020DE-01 series of semi-shielded SMD power inductors. These components utilize a wirewound ferrite core structure, distinguishing them from molded or composite core variants found in other Vishay product lines.

Fixed Inductors Replacement Considerations

Consult official substitution lists for equivalent inductance and current ratings. Verify that any alternative maintains compatible DC resistance and physical envelope constraints for PCB integration.
