IH-1022H

Power Line Filter Modules Overview

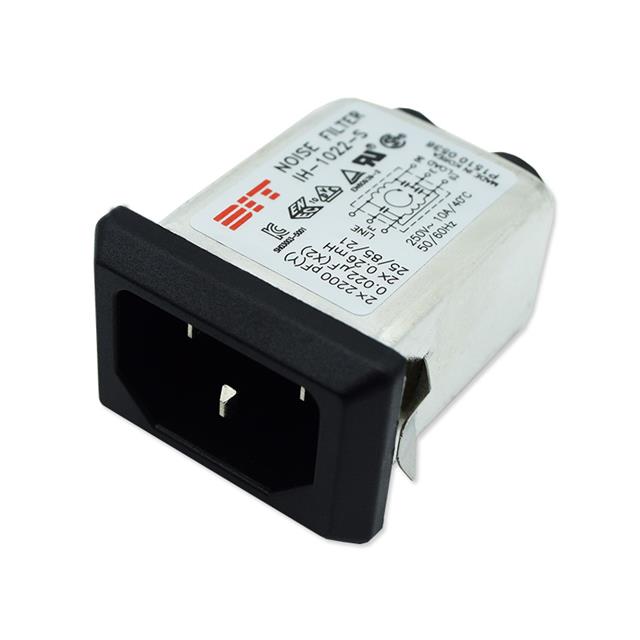

The DIT IH-1022H is a single-phase EMC/EMI line filter module designed for AC power line applications. It features a rated current of 10 A and operates at voltages up to 250 VAC within the 50 to 60 Hz frequency range. The unit utilizes a single-stage filtering architecture to suppress electromagnetic interference. Mechanical integration is facilitated by an IEC 320-C14 inlet connector and quick-connect terminals, ensuring secure electrical attachment in standard power entry configurations.

Power Line Filter Modules Feature Summary

• Single-stage EMI suppression for AC power lines
• IEC 320-C14 inlet interface for standardized mounting
• Quick-connect terminal design for rapid assembly

Power Line Filter Modules Applications

• AC power entry modules for electronic equipment
• Electromagnetic compatibility filtering in consumer electronics
• Industrial control system power inputs

Power Line Filter Modules Procurement Notes

Verify that the specific batch matches the manufacturer's datasheet specifications for voltage and current ratings. Confirm the presence of the IEC 320-C14 inlet and quick-connect terminals during inspection. Ensure compliance with relevant safety standards required for the target application environment before deployment.

Power Line Filter Modules Selection Notes

Select this component when a single-stage filter solution is sufficient for the intended noise reduction requirements. The IEC 320-C14 interface dictates compatibility with mating connectors on the host device. Ensure the operating environment supports the specified 250 VAC rating and 10 A continuous current capacity without derating.

Power Line Filter Modules Part Context

This component belongs to the category of AC power line filters manufactured by DIT. These modules are engineered to mitigate conducted emissions from switching power supplies and other noisy loads. The design prioritizes compact integration into standard power entry assemblies used in various electronic devices requiring basic EMI protection.

Power Line Filter Modules Replacement Considerations

Substitute parts must match the 10 A current rating, 250 VAC voltage rating, and IEC 320-C14 mechanical interface. Verify that alternative components offer equivalent single-stage filtering performance and utilize compatible quick-connect terminals for direct interchangeability.
