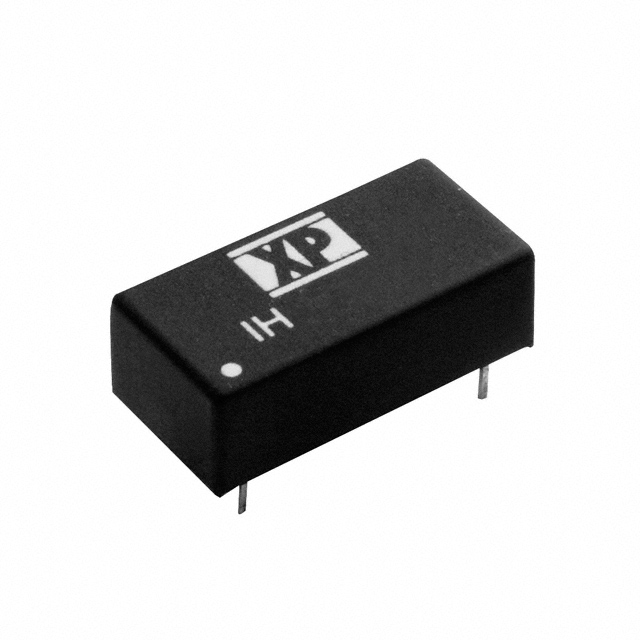

IH2415D is listed in the DC DC Converters range at ChipApex. The manufacturer field lists XP Power. Its product description is DC DC CONVERTER +/-15V 2W. Review the specifications below when checking this part for your BOM.
DC DC Converters specifications for IH2415D
- Description：DC DC CONVERTER +/-15V 2W
- Series：IH (2W)
- Mfr：XP Power
- Package：Tube
- Type：Isolated Module
- Number of Outputs：2
- Voltage - Input (Min)：21.6V
- Voltage - Input (Max)：26.4V
- Voltage - Output 1：15V
- Voltage - Output 2：-15V
- Voltage - Output 3：-
- Voltage - Output 4：-
- Current - Output (Max)：66mA, 66mA
- Power (Watts)：2 W
- Voltage - Isolation：1 kV
- Applications：ITE (Commercial)
- Features：-
- Operating Temperature：-40°C ~ 85°C
- Efficiency：82%
- Mounting Type：Through Hole
- Package / Case：6-DIP Module
- Size / Dimension：0.80" L x 0.40" W x 0.27" H (20.3mm x 10.2mm x 6.9mm)
- Supplier Device Package：-
- Control Features：-
- Approval Agency：-
- Standard Number：-
- Grade：-
- Qualification：-
DC DC Converters datasheet and documents for IH2415D
