IHLP1616BZERR47M0H

Fixed Inductors Overview

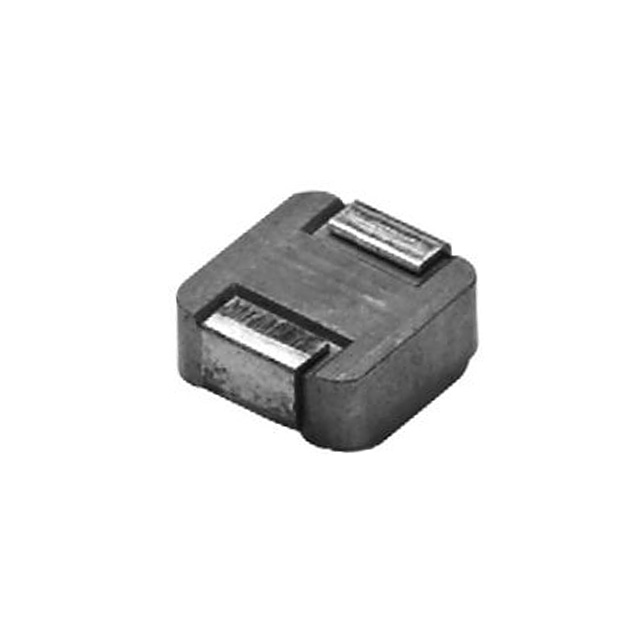

The IHLP1616BZERR47M0H is a shielded surface-mount power inductor from the IHLP-0H series by Vishay Dale. It features a composite core and offers an inductance of 470 nH with a tolerance of ±20%. The component supports a maximum DC current of 8.5 A and a saturation current of 17.5 A, with a maximum DC resistance of 14.1 mOhms. It operates within a temperature range of -55°C to +125°C and has a self-resonant frequency of 145 MHz. The package dimensions are 4.06 mm x 4.06 mm x 2 mm.

Fixed Inductors Feature Summary

• Shielded construction minimizes electromagnetic interference for high-frequency applications
• Composite core material provides stable performance under varying load conditions
• Compact 1616 footprint enables space-efficient PCB layout

Fixed Inductors Applications

• High frequency DC/DC converter circuits
• General purpose power filtering
• Automotive electronics systems

Fixed Inductors Procurement Notes

Verify the specific suffix '0H' against official Vishay documentation to confirm the exact electrical characteristics, as variations exist within the IHLP family. Ensure compatibility with standard reflow soldering profiles and check RoHS compliance status through manufacturer datasheets prior to integration into production lines.

Fixed Inductors Selection Notes

Select this component when a compact, shielded inductor is required for high-current switching applications. The 17.5 A saturation current allows for robust handling of transient loads. Consider the 14.1 mOhms DCR for efficiency calculations in low-voltage, high-current power stages where thermal management is critical.

Fixed Inductors Part Context

This part belongs to the IHLP-0H series of surface-mount power inductors. The series is designed for high-frequency operation and features a molded composite core. The 1616 package size represents a balance between current handling capability and board space constraints, suitable for modern dense electronic assemblies.

Fixed Inductors Replacement Considerations

Direct substitutes include other Vishay IHLP parts with identical 1616 footprints and similar inductance values, such as the IHLP1616BZERR22M0H or IHLP1616BZERR10M0H, provided their current ratings meet the design requirements.
