IL3R-HX5F7-32.768KHZ

Crystals Overview

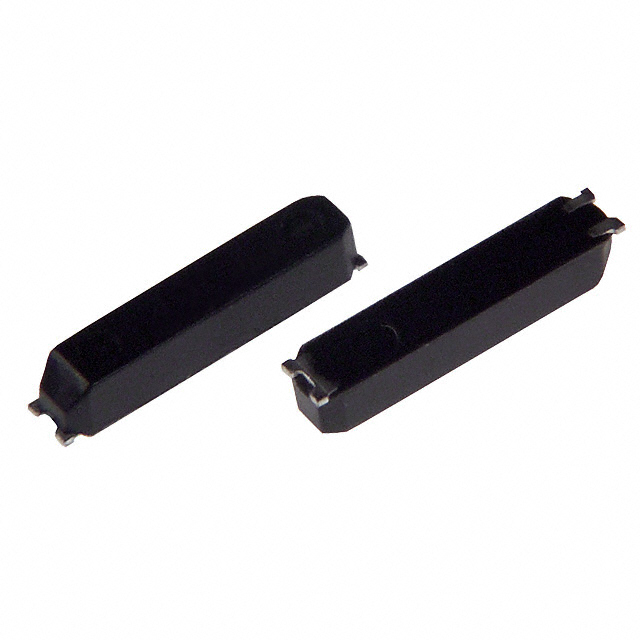

The IL3R-HX5F7-32.768KHZ is a quartz crystal resonator manufactured by ILSI, designed for surface-mount applications. It operates at a nominal frequency of 32.768 kHz with a tolerance of ±20 ppm. The component features a load capacitance of 7 pF and a maximum series resistance of 65 kOhms. It utilizes a 4-SMD, flat lead package configuration. The device is RoHS compliant and suitable for standard operating temperature ranges.

Crystals Feature Summary

• Surface-mount tuning fork crystal design optimized for low power consumption
• High stability frequency generation for precise timekeeping applications
• Compliant with RoHS environmental standards

Crystals Applications

• Real-time clock (RTC) circuits in consumer electronics
• Microcontroller system timing references
• Wearable technology devices requiring compact form factors

Crystals Procurement Notes

Verify the specific suffix codes against official ILSI documentation to ensure correct load capacitance and tolerance specifications. Confirm RoHS compliance status through current manufacturer declarations. Check for any recent supply chain updates or alternative package options that may affect integration into existing designs.

Crystals Selection Notes

Select this component when a 32.768 kHz reference is required for RTC functions. Ensure the circuit design supports the specified 7 pF load capacitance. Verify that the 65 kOhm maximum series resistance aligns with the oscillator circuit requirements. Consider the physical dimensions of the 4-SMD package for PCB layout constraints.

Crystals Part Context

This part belongs to the ILSI family of quartz crystals, which are widely used in timing applications. ILSI, powered by Abracon, specializes in temperature compensated crystal oscillators and broad quartz crystal ranges. This specific model targets cost-sensitive, space-constrained markets requiring reliable low-frequency timing.

Crystals Replacement Considerations

Cross-reference with other 32.768 kHz SMD crystals from manufacturers like Epson or NDK. Ensure equivalent electrical parameters such as load capacitance and motional resistance are matched. Verify package compatibility before substitution.
