IL3T-HX5F12.5-32.768KHZ

Crystals Overview

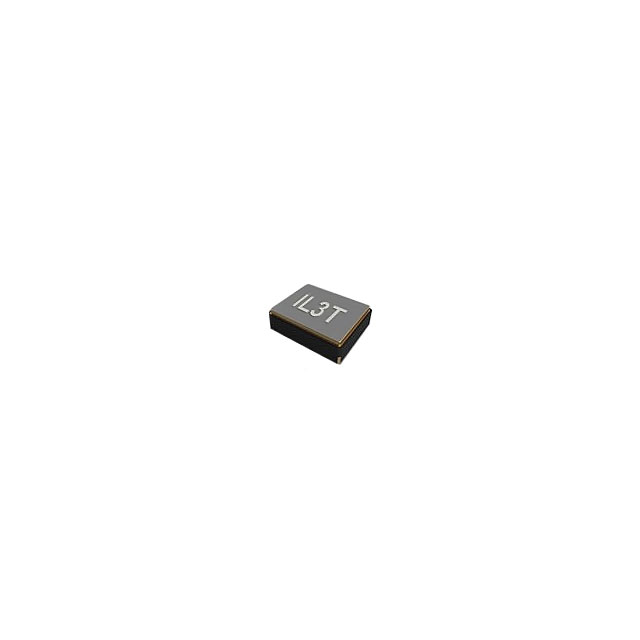

The IL3T-HX5F12.5-32.768KHZ is a surface-mount quartz crystal resonator manufactured by ILSI. It operates at a nominal frequency of 32.768 kHz with a frequency tolerance of ±20 ppm. The component features a load capacitance of 12.5 pF and a maximum series resistance of 90 kOhms. It utilizes a 2-SMD, No Lead package configuration. The device is designed for fundamental operating mode and supports an operating temperature range from -40°C to 85°C.

Crystals Feature Summary

• Surface-mount construction for automated assembly
• Fundamental oscillation mode operation
• Compliance with RoHS standards

Crystals Applications

• Real-time clock circuits in consumer electronics
• Microcontroller system timing references
• Low-power embedded device synchronization

Crystals Procurement Notes

Verify the specific suffix designation against the manufacturer's current datasheet to confirm exact electrical tolerances and packaging specifications. Ensure that the selected variant matches the required load capacitance and frequency stability parameters for the target application circuit design.

Crystals Selection Notes

Select this component when a compact surface-mount form factor is required for low-frequency timing applications. Consider the ±20 ppm tolerance and 12.5 pF load capacitance requirements relative to the host oscillator circuit's internal capacitance values to ensure accurate frequency generation.

Crystals Part Context

This part belongs to the IL3T series of thin-profile quartz crystals. It serves as a timekeeping reference element within electronic systems requiring precise 32.768 kHz signals. The component replaces through-hole variants in modern miniaturized designs where board space is limited.

Crystals Replacement Considerations

IL3W-HX5F12.5-32.768KHZ
