IL3T-JX5F9-32.768KHZ

Crystals Overview

The IL3T-JX5F9-32.768KHZ is a surface-mount quartz crystal resonator manufactured by ILSI, designed for precise frequency control in electronic circuits. It operates at a standard frequency of 32.768 kHz with a frequency tolerance of ±20 ppm and an annual aging rate of ±5 ppm. The component features a load capacitance of 9 pF and a maximum series resistance of 90 kOhms. It utilizes a fundamental mode oscillation mechanism and is housed in a compact 2-SMD, no lead package measuring 2x1.2 mm, suitable for automated pick-and-place assembly.

Crystals Feature Summary

• Compact 2-SMD no-lead package design optimized for space-constrained applications
• Fundamental mode operation ensuring stable frequency generation
• Low power consumption characteristics suitable for battery-operated devices

Crystals Applications

• Real-time clock (RTC) circuits in embedded systems
• Wearable electronics requiring precise timekeeping
• IoT devices with low-power monitoring requirements

Crystals Procurement Notes

Verify the specific ordering suffix to ensure compatibility with required load capacitance and tolerance levels. Confirm that the 2-SMD no-lead package dimensions align with the PCB footprint design. Check datasheet specifications for operating temperature range and storage conditions to ensure environmental suitability for the intended application environment.

Crystals Selection Notes

Select this component when a small form factor is critical for the design. Ensure the circuit design accounts for the 9 pF load capacitance requirement to achieve accurate frequency performance. Consider the ±20 ppm tolerance if higher precision is needed for long-term synchronization tasks.

Crystals Part Context

This crystal belongs to the IL3T series from ILSI, which focuses on ultra-thin, small-sized quartz crystals for modern consumer electronics. The series addresses the market demand for miniaturization in digital products where space is limited compared to traditional ceramic oscillators or larger through-hole components.

Crystals Replacement Considerations

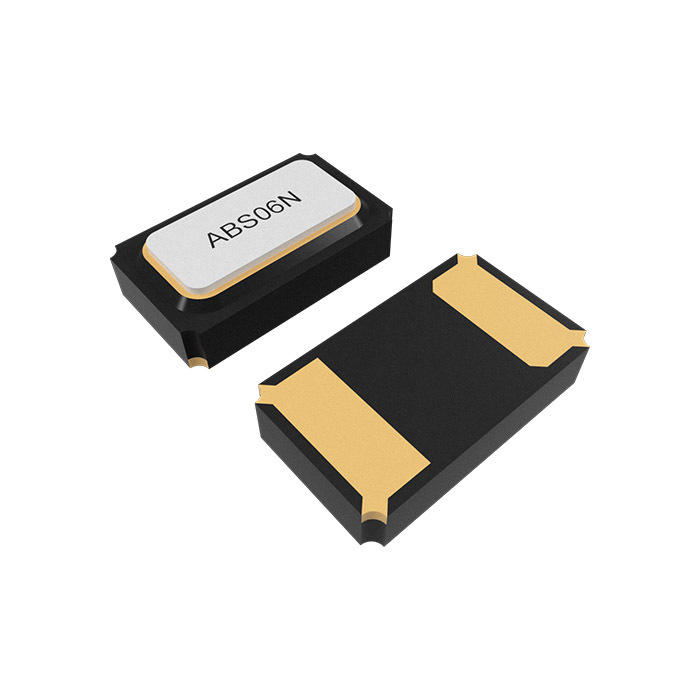

The ABS06-32.768KHZ-6-T from Abracon is listed as an alternative part number. Verify pin compatibility and electrical parameters before substitution.
