IL3X-HX5F6-32.768KHZ

Crystals Overview

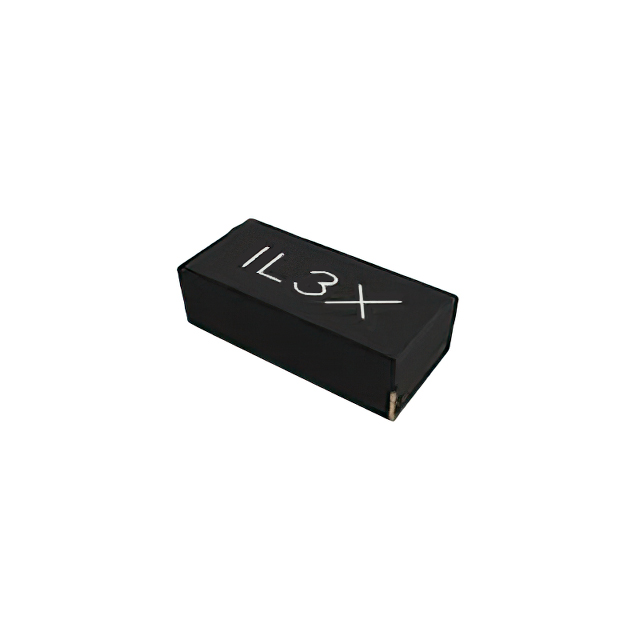

The IL3X-HX5F6-32.768KHZ is a surface-mount crystal unit manufactured by ILSI, designed for precision timing applications. It operates at a standard frequency of 32.768 kHz with a frequency tolerance of ±20 ppm. The component features a load capacitance of 6 pF and is housed in a compact 2-SMD, no-lead package measuring 3.2 x 1.5 x 0.9 mm. It supports an operating temperature range from -40°C to +85°C, ensuring reliable performance in various electronic environments.

Crystals Feature Summary

• Compact SMD footprint optimized for space-constrained designs
• Stable frequency output suitable for real-time clock circuits
• Wide operational temperature range for industrial reliability

Crystals Applications

• Real-time clock (RTC) circuits
• Automotive electronics systems
• Consumer electronic devices requiring precise timekeeping

Crystals Procurement Notes

Verify the specific suffix and series designation against official ILSI documentation to ensure compatibility with target circuit load capacitance requirements. Confirm RoHS compliance status and packaging specifications directly with authorized distributors or the manufacturer prior to procurement to avoid discrepancies in component sourcing.

Crystals Selection Notes

Select this component when a low-profile surface-mount crystal is required for 32.768 kHz timing applications. Ensure the design load capacitance matches the specified 6 pF value to maintain frequency accuracy within the ±20 ppm tolerance. Consider the thermal stability and package dimensions for integration into portable or automotive hardware.

Crystals Part Context

This part belongs to the IL3X series of quartz crystal units, specifically tailored for surface-mount technology. It serves as a fundamental timing element in digital systems, providing the necessary clock signal for microcontrollers and real-time clock modules. The series is known for its reliability in maintaining accurate timekeeping across varying environmental conditions.

Crystals Replacement Considerations

Cross-reference with other 32.768 kHz SMD crystals offering similar dimensional constraints and electrical parameters. Verify that alternative components support the same load capacitance and frequency tolerance to ensure seamless integration without redesigning the PCB layout or oscillator circuit.
