ILAS1206ER601V

Chip Ferrite Bead Overview

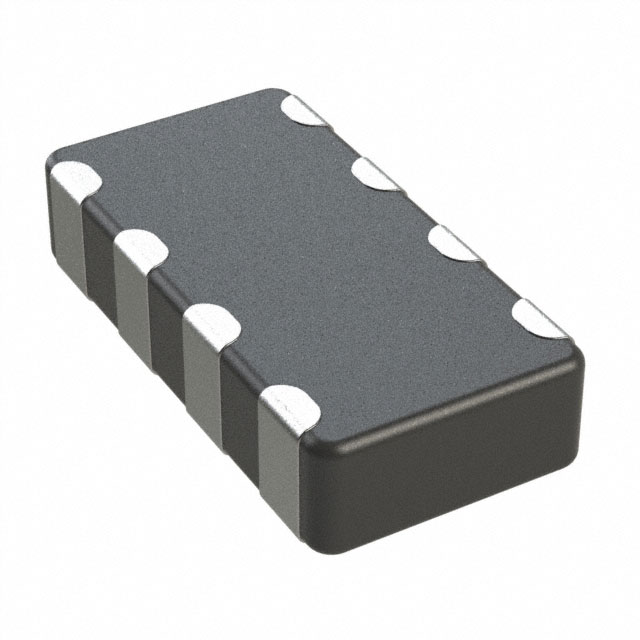

The ILAS1206ER601V is a high-speed ferrite bead array manufactured by Vishay Dale. It features four independent signal lines within a single 1206 (3216 metric) surface-mount package, containing eight elements total. The component provides an impedance of 600 Ohms at a test frequency of 100 MHz with a tolerance of 25%. It supports a maximum DC current of 100 mA per line and has a maximum DC resistance of 600 mOhms. The device operates reliably within a temperature range of -55°C to +125°C.

Chip Ferrite Bead Feature Summary

• Integrates four independent signal channels into a compact 1206 footprint for space-constrained designs
• Engineered for high-speed applications with specified 600 Ohm impedance at 100 MHz
• Constructed with eight internal elements to provide effective common-mode noise suppression

Chip Ferrite Bead Applications

• High-speed digital signal line filtering
• EMI suppression in data transmission circuits
• Noise reduction in multi-channel interface boards

Chip Ferrite Bead Procurement Notes

Verify the specific suffix 'V' against the official Vishay datasheet to confirm material composition and compliance status. Ensure the selected packaging format matches production requirements, as options include cut tape, reel, or Digi-Reel. Confirm that the 100 mA current rating aligns with the target circuit's operational limits before finalizing procurement.

Chip Ferrite Bead Selection Notes

Select this component when multiple signal lines require noise filtering within a limited board area. The 1206 package allows for standard SMT assembly processes. Consider the 600 mOhms DC resistance impact on signal integrity and power loss. Verify that the 100 mA current handling capability exceeds the peak operating current of the connected signals to prevent saturation or overheating.

Chip Ferrite Bead Part Context

This part belongs to the ILAS-1206 series of ferrite chip bead arrays from Vishay Dale. It is designed specifically for suppressing electromagnetic interference in high-frequency digital circuits. The series utilizes multilayer technology to achieve high impedance in a small form factor, distinguishing it from single-line ferrite beads.

Chip Ferrite Bead FAQ

What is the impedance specification at the test frequency?

The impedance is 600 Ohms measured at a frequency of 100 MHz.

How many signal lines does this component support?

The ILAS1206ER601V contains four independent signal lines.
