ILB1206ER801V

Chip Ferrite Bead Overview

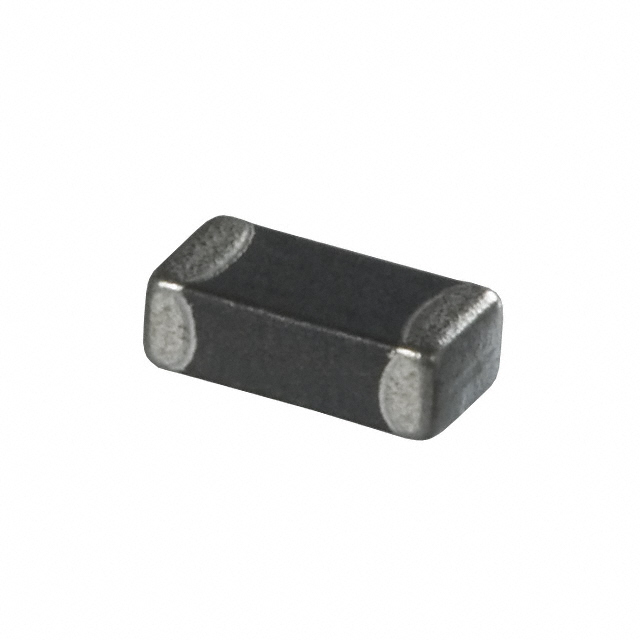

The ILB1206ER801V is a single-line multilayer ferrite chip bead manufactured by Vishay Dale, designed for surface-mount technology in the 1206 (3216 metric) package. It exhibits an impedance of 800 Ohms at a test frequency of 100 MHz with a tolerance of ±25%. The component supports a maximum DC current of 200 mA and maintains a maximum DC resistance of 300 mOhms. It operates reliably within a temperature range of -55°C to +125°C, featuring physical dimensions of 3.2 mm length, 1.6 mm width, and a maximum height of 1.30 mm.

Chip Ferrite Bead Feature Summary

• Multilayer construction provides compact signal line filtering in a standard 1206 footprint.
• High impedance characteristic effectively attenuates high-frequency electromagnetic interference.
• Wide operating temperature range ensures stability in demanding thermal environments.

Chip Ferrite Bead Applications

• High-speed data line noise suppression
• Power supply output filtering
• Clock circuit EMI reduction

Chip Ferrite Bead Procurement Notes

Verify the specific suffix 'V' against the manufacturer's official datasheet to confirm impedance value and tolerance specifications. Ensure the ordering part number matches the required RoHS compliance status and moisture sensitivity level. Confirm package availability aligns with production requirements, as packaging formats may vary between reels and cut tape depending on distributor stock.

Chip Ferrite Bead Selection Notes

Select this component when a high impedance value of 800 Ohms is required for single-line applications. Verify that the 200 mA current rating meets the circuit's operational demands without saturation. Consider the 1206 package size for board space constraints and ensure the soldering profile accommodates the specified temperature limits.

Chip Ferrite Bead Part Context

This component belongs to the ILB-1206 series of ferrite beads from Vishay Dale. The series offers various impedance values tailored for different noise suppression needs while maintaining consistent physical dimensions. These components are engineered for general-purpose EMI suppression in portable and industrial electronics requiring reliable high-frequency performance.

Chip Ferrite Bead Replacement Considerations

Consult Vishay Dale documentation for direct cross-references. Alternative suppliers may offer similar 1206 ferrite beads, but impedance curves and current ratings must be validated against the original specifications to ensure equivalent circuit performance.
