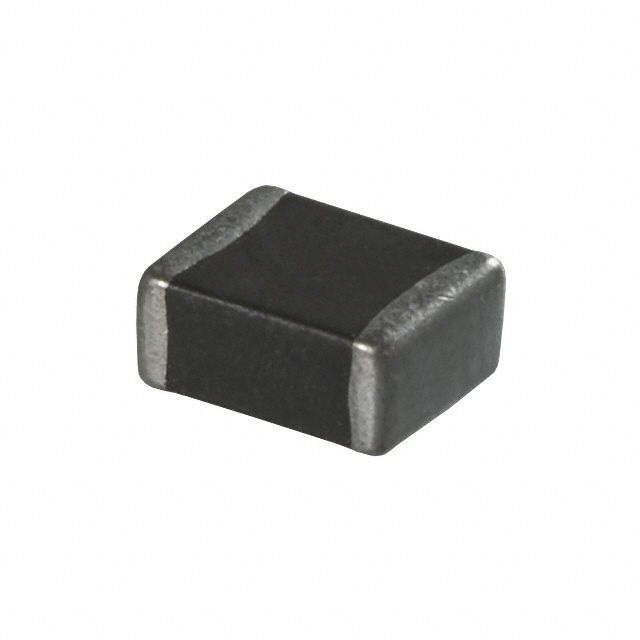

ILBB1210ER310V is listed in the Chip Ferrite Bead range at ChipApex. The manufacturer field lists Vishay Dale. Its product description is FERRITE BEAD 31 OHM 1210 1LN. Review the specifications below when checking this part for your BOM.
Chip Ferrite Bead specifications for ILBB1210ER310V
- Description：FERRITE BEAD 31 OHM 1210 1LN
- Series：ILBB-1210
- Mfr：Vishay Dale
- Package：Tape & Reel (TR)
- Filter Type：-
- Number of Lines：1
- Impedance @ Frequency：31 Ohms @ 100 MHz
- Current Rating (Max)：400mA
- DC Resistance (DCR) (Max)：300mOhm
- Ratings：-
- Operating Temperature：-55°C ~ 125°C
- Package / Case：1210 (3225 Metric)
- Mounting Type：Surface Mount
- Height (Max)：0.059" (1.50mm)
- Size / Dimension：0.126" L x 0.098" W (3.20mm x 2.50mm)
- Features：-
Chip Ferrite Bead datasheet and documents for ILBB1210ER310V
Chip Ferrite Bead Overview
The Vishay Dale ILBB1210ER310V is a multilayer ferrite bead in a 1210 (3225 metric) surface-mount package. It provides an impedance of 31 Ohms at a test frequency of 100 MHz with a tolerance of ±25%. The component supports a maximum DC current of 400 mA and has a maximum DC resistance of 300 mOhms. It operates within a temperature range of -55°C to +125°C. Physical dimensions are 3.2 mm length, 2.5 mm width, and 1.3 mm height.
Chip Ferrite Bead Feature Summary
- Multilayer construction for electromagnetic interference suppression
- Nickel barrier coating to prevent silver migration
- Wide operating temperature range for rugged environments
Chip Ferrite Bead Applications
- Telecommunications equipment
- Computer systems
- Automotive applications
Chip Ferrite Bead Procurement Notes
Verify the specific part number ILBB1210ER310V against official Vishay documentation to confirm impedance and current ratings. Ensure compatibility with SMD/SMT assembly processes. Check for RoHS compliance status in the latest datasheet. Confirm packaging options such as cut tape or reel availability with authorized distributors.
Chip Ferrite Bead Selection Notes
Select this component for circuits requiring 31 Ohms impedance at 100 MHz. Ensure the design accommodates a maximum DC current of 400 mA. Verify that the 1210 footprint fits the PCB layout. Consider the -55°C to +125°C operating range for environmental suitability. Compare DC resistance requirements against the 300 mOhms specification.
Chip Ferrite Bead Part Context
This component belongs to the Vishay Dale ILBB series of surface-mount multilayer ferrite beads. The series includes various packages such as 0402, 1210, 1806, and 1812. These components are designed to reduce electromagnetic interference in telecommunications, computer, and automotive applications. The ILBB series features broad operating temperature ranges and nickel barrier coatings for reliability.
Chip Ferrite Bead FAQ
What is the test frequency for the impedance rating?
The impedance of 31 Ohms is rated at a test frequency of 100 MHz.
Does the component include a nickel barrier coating?
Yes, the ILBB series features a nickel barrier coating to eliminate silver migration.
