ILBB1806ER151V

Chip Ferrite Bead Overview

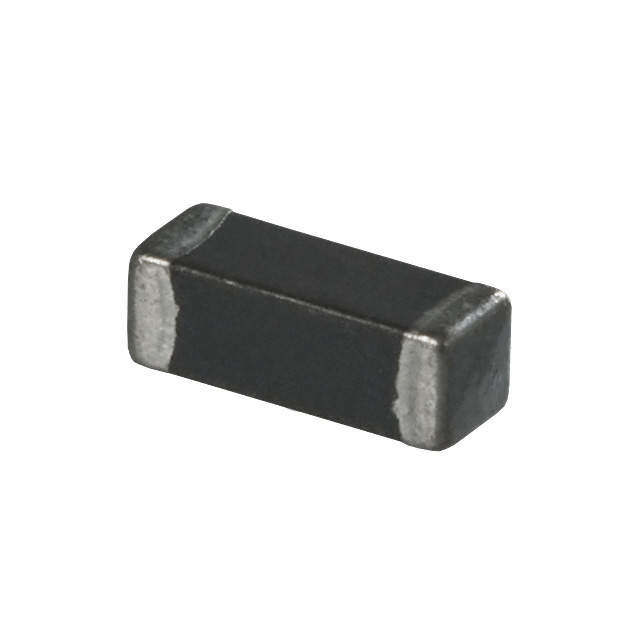

The Vishay Dale ILBB1806ER151V is a multilayer ferrite bead in an 1806 (4516 metric) surface-mount package. It provides an impedance of 150 Ohms at a test frequency of 100 MHz with a tolerance of ±25%. The component supports a maximum DC current of 200 mA and has a maximum DC resistance of 300 mOhms. It operates within a temperature range of -55°C to +125°C.

Chip Ferrite Bead Feature Summary

• Multilayer construction for electromagnetic interference suppression
• Nickel barrier coating to prevent silver migration
• Wide operating temperature range for rugged environments

Chip Ferrite Bead Applications

• Telecommunications equipment
• Computer systems
• Automotive applications

Chip Ferrite Bead Procurement Notes

Verify the specific impedance value and current rating against the official Vishay datasheet, as distributor listings may vary or contain conflicting specifications. Confirm the package dimensions and termination type match the design requirements before finalizing the order.

Chip Ferrite Bead Selection Notes

Select this component when a 150 Ohm impedance at 100 MHz is required in an 1806 footprint. Ensure the circuit current does not exceed the 200 mA limit to maintain performance. Consider the nickel barrier coating if silver migration resistance is necessary for the application environment.

Chip Ferrite Bead Part Context

This part belongs to the Vishay Dale ILBB series of surface-mount multilayer ferrite beads. The series includes various packages such as 0402, 0805, 1210, and 1812, offering impedance values ranging from 31 to 600 Ohms. These components are designed to reduce electromagnetic interference in sensitive electronic circuits.

Chip Ferrite Bead Replacement Considerations

Check for other ILBB series parts with similar impedance and current ratings. Verify that any substitute matches the 1806 package dimensions and thermal characteristics.
