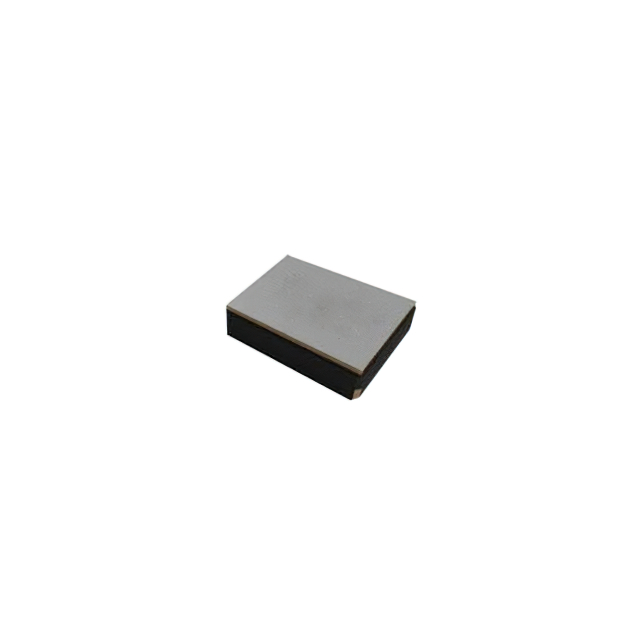

ILCX07-BB3F12-16.000MHZ

$0.49

Description：CRYSTAL 16.0000MHZ 12PF SMD
Series：ILCX07
Mfr：ILSI
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:2672abbe970f Category: Crystals Brand: ILSI

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

ILCX07-BB3F12-16.000MHZ is listed in the Crystals range at ChipApex. The manufacturer field lists ILSI. Its product description is CRYSTAL 16.0000MHZ 12PF SMD. Review the specifications below when checking this part for your BOM.

Crystals specifications for ILCX07-BB3F12-16.000MHZ

Description：CRYSTAL 16.0000MHZ 12PF SMD
Series：ILCX07
Mfr：ILSI
Package：Tape & Reel (TR),Cut Tape (CT)
Type：MHz Crystal
Frequency：16 MHz
Frequency Stability：±50ppm
Frequency Tolerance：±50ppm
Load Capacitance：12pF
ESR (Equivalent Series Resistance)：50 Ohms
Operating Mode：Fundamental
Operating Temperature：-20°C ~ 70°C
Ratings：-
Mounting Type：Surface Mount
Package / Case：4-SMD, No Lead
Size / Dimension：0.197" L x 0.126" W (5.00mm x 3.20mm)
Height - Seated (Max)：0.039" (1.00mm)

Crystals datasheet and documents for ILCX07-BB3F12-16.000MHZ

ILCX07-BB3F12-16.000MHZ

Crystals Overview

The ILCX07-BB3F12-16.000MHZ is a parallel fundamental quartz crystal manufactured by ILSI, designed for surface mount applications. It operates at a nominal frequency of 16.000 MHz with a load capacitance of 12 pF and a maximum equivalent series resistance of 50 ohms. The component features an AT-cut design and offers a frequency tolerance of ±50 ppm at 25°C, with aging specified at 5 ppm per year. It functions within a temperature range of -20°C to +70°C and supports a drive level of 100 µW. The package dimensions are 5.0 mm x 3.2 mm x 1.3 mm, utilizing a two-pad ceramic configuration.

Crystals Feature Summary

Low Equivalent Series Resistance (ESR) design
Compatible with lead-free processing standards
Cost-effective surface mount packaging

Crystals Applications

Fibre Channel Server & Storage systems
SONET / SDH networks
802.11 / WiFi interfaces
T1/E1 and T3/E3 transmission lines

Crystals Procurement Notes

Verify the specific suffix BB3F12 against official ILSI documentation to confirm the 12 pF load capacitance and 50 ohm ESR specifications. Ensure the ordering code matches the required 16 MHz frequency and ±50 ppm tolerance. Confirm RoHS compliance status and check for any specific tape and reel requirements during procurement.

Crystals Selection Notes

Select this component when a 16 MHz reference signal is required for SMD assembly in communication infrastructure. The 12 pF load capacitance must match the oscillator circuit design. Consider the 50 ohm ESR limit for driver compatibility. The operating temperature range suits standard commercial environments.

Crystals Part Context

This part belongs to the ILCX07 series of parallel fundamental quartz crystals. The series utilizes a 5.0 mm x 3.2 mm ceramic package suitable for automated surface mount placement. The model designation indicates specific electrical parameters including load capacitance and frequency stability tailored for high-reliability data transmission applications.

Crystals Replacement Considerations

Cross-reference with other ILCX07 variants sharing identical 16 MHz frequency, 12 pF load capacitance, and 50 ohm ESR limits. Verify pinout compatibility and physical footprint alignment before substitution.
