ILCX18-FF5F10-16.000MHZ

Crystals Overview

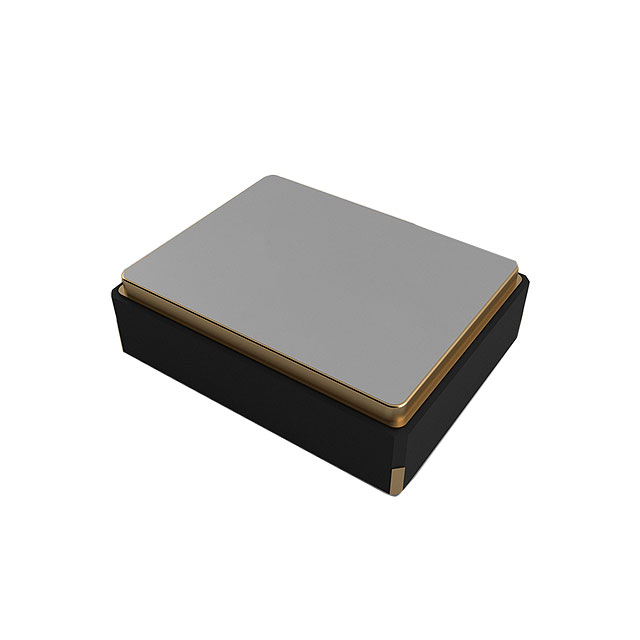

ILCX18-FF5F10-16.000MHZ is a parallel fundamental quartz crystal from the ILCX18 series, manufactured by ILSI America. It operates at a nominal frequency of 16 MHz with a load capacitance of 10 pF. The component utilizes a 4-pad ceramic surface-mount package measuring 2.0 mm x 2.5 mm. Key electrical specifications include a maximum equivalent series resistance (ESR) of 100 Ω and a shunt capacitance (C0) of 3.5 pF maximum. Frequency tolerance and stability are rated at ±30 ppm at 25°C. The device supports lead-free processing and is supplied in tape and reel format.

Crystals Feature Summary

• Compact 4-pad ceramic surface-mount package for space-constrained designs
• Compatible with lead-free soldering processes and RoHS standards
• Low cost SMD construction suitable for high-volume manufacturing

Crystals Applications

• PCMCIA Cards
• Wireless LAN modules
• USB interface circuits
• GSM cellular phones

Crystals Procurement Notes

Verify the specific ordering suffix to confirm the exact frequency tolerance and stability ratings required for your application. Ensure the procurement channel provides official documentation confirming RoHS compliance and lead-free processing compatibility. Cross-reference the part number against the manufacturer's current datasheet to validate active status and availability before finalizing orders.

Crystals Selection Notes

Select this component when a small footprint is critical for wireless or mobile applications. The 10 pF load capacitance requires matching oscillator circuit design. Verify that the 100 Ω ESR limit aligns with the host oscillator's drive level requirements. Consider the operating temperature range specified in the datasheet to ensure performance stability under environmental conditions.

Crystals Part Context

The ILCX18 series represents ILSI America's line of miniature quartz crystals designed for portable electronics. This model belongs to the 2.0 mm x 2.5 mm package family, offering a smaller form factor compared to standard 3.2 mm x 5.0 mm variants. It targets applications requiring reduced board space while maintaining reliable frequency generation for digital communication systems.

Crystals Replacement Considerations

Direct substitutes within the ILCX18 series include models with identical package dimensions but different frequencies, such as ILCX18-FF5F10-25.000MHZ or ILCX18-FF5F10-30.000MHZ. When replacing, verify that the new part's load capacitance and ESR match the original circuit design parameters.
