ILCX19-JH5F10-32.000MHZ

Crystals Overview

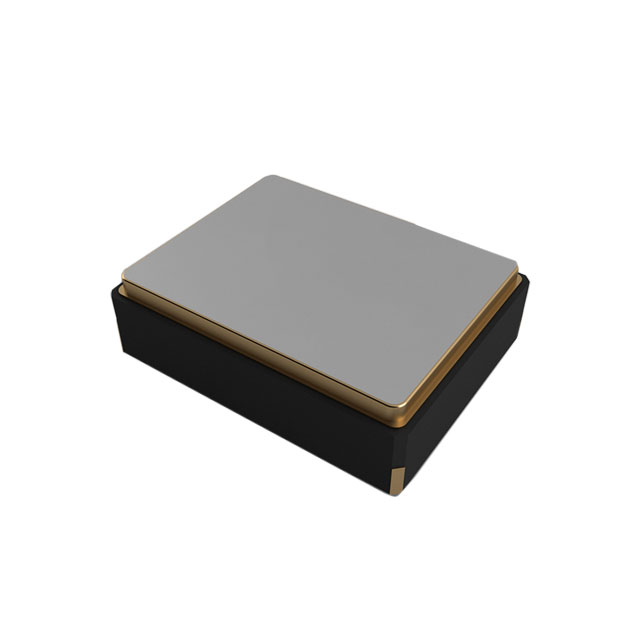

The ILCX19-JH5F10-32.000MHZ is a fundamental mode quartz crystal resonator manufactured by ILSI. It operates at a nominal frequency of 32 MHz with a frequency stability tolerance of ±10 ppm. The component features a load capacitance of 10 pF and an equivalent series resistance (ESR) of 60 Ohms. It is housed in a compact 4-SMD, No Lead package designed for surface-mount applications.

Crystals Feature Summary

• Fundamental mode quartz crystal operation
• Compact surface-mount package design
• High frequency stability specification

Crystals Applications

• Clock signal generation for microprocessors
• Timing reference for communication interfaces
• Frequency control in consumer electronics

Crystals Procurement Notes

Verify the specific suffix codes against the manufacturer's official datasheet to ensure exact electrical parameters match the design requirements. Confirm package dimensions and soldering profiles align with assembly capabilities before procurement.

Crystals Selection Notes

Select this component when a stable 32 MHz reference is required in space-constrained designs. Ensure the circuit load capacitance matches the specified 10 pF value to maintain accuracy within the ±10 ppm tolerance range.

Crystals Part Context

This part belongs to the ILCX19 series of surface-mount crystals from ILSI. The series offers various frequencies and packages optimized for portable devices requiring precise timing solutions with minimal footprint.

Crystals Replacement Considerations

Cross-reference with other 32 MHz SMD crystals having similar ESR and load capacitance values. Verify pin compatibility and mechanical dimensions for direct replacement.
