ILSB1206ER3R3K

$0.16

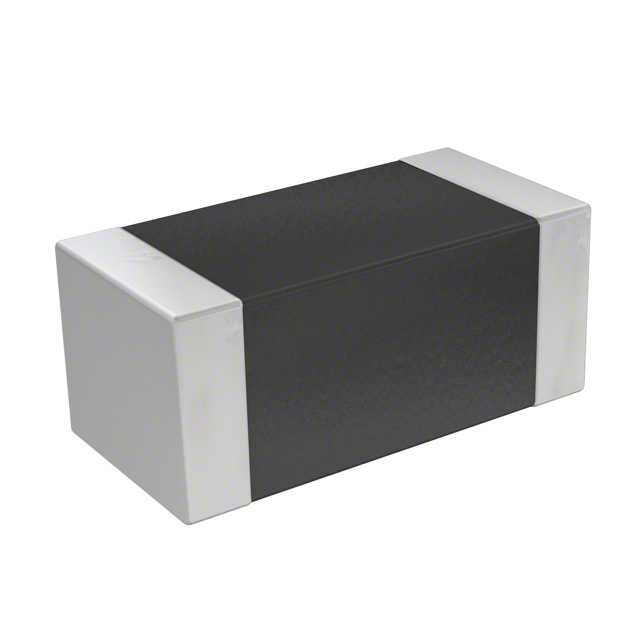

Description：FIXED IND 3.3UH 50MA 700MOHM SMD
Series：ILSB-1206
Mfr：Vishay Dale
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:74403647a33e Category: Fixed Inductors Brand: Vishay Dale

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

ILSB1206ER3R3K is listed in the Fixed Inductors range at ChipApex. The manufacturer field lists Vishay Dale. Its product description is FIXED IND 3.3UH 50MA 700MOHM SMD. Review the specifications below when checking this part for your BOM.

Fixed Inductors specifications for ILSB1206ER3R3K

Description：FIXED IND 3.3UH 50MA 700MOHM SMD
Series：ILSB-1206
Mfr：Vishay Dale
Package：Tape & Reel (TR),Cut Tape (CT)
Type：Multilayer
Material - Core：Ferrite
Inductance：3.3 µH
Tolerance：±10%
Current Rating (Amps)：50 mA
Current - Saturation (Isat)：-
Shielding：Shielded
DC Resistance (DCR)：700mOhm Max
Q @ Freq：45 @ 10MHz
Frequency - Self Resonant：48MHz
Ratings：-
Operating Temperature：-55°C ~ 125°C
Inductance Frequency - Test：10 MHz
Mounting Type：Surface Mount
Package / Case：1206 (3216 Metric)
Supplier Device Package：1206
Size / Dimension：0.126" L x 0.063" W (3.20mm x 1.60mm)
Height - Seated (Max)：0.055" (1.40mm)
Features：-

Fixed Inductors datasheet and documents for ILSB1206ER3R3K

ILSB1206ER3R3K

Fixed Inductors Overview

The ILSB1206ER3R3K is a shielded RF inductor from Vishay Dale, designed for surface-mount applications. It features an inductance of 3.3 uH with a tolerance of 10%. The component operates within a temperature range of -55 C to +125 C and has a maximum DC current rating of 15 mA. Its maximum DC resistance is 1.55 Ohms, with a minimum Q factor of 35 at a test frequency of 10 MHz. The self-resonant frequency is 46 MHz. The physical dimensions are 1.6 mm in length, 0.8 mm in width, and 0.8 mm in height, conforming to the 0603 (1608 metric) package.

Fixed Inductors Feature Summary

Shielded construction minimizes electromagnetic interference coupling.

Fixed Inductors Applications

High reliability electronic circuits

Fixed Inductors Procurement Notes

Verify the exact part number against official Vishay documentation to ensure compatibility with specific design requirements. Confirm that the established reliability type meets the intended application standards. Check RoHS compliance details as specified in the manufacturer's datasheet. Ensure the operating temperature range aligns with the environmental conditions of the final product assembly.

Fixed Inductors Selection Notes

Select this component for applications requiring shielded RF inductors in compact 0603 packages. Consider the low maximum DC current rating when designing power-sensitive circuits. Evaluate the self-resonant frequency to ensure suitability for the target signal frequencies. Verify that the high-temperature capability supports the operational environment constraints.

Fixed Inductors Part Context

This component belongs to the ILSB-0603 series of RF inductors manufactured by Vishay / Dale. It is categorized under Established Reliability products, indicating its use in demanding environments. The series offers shielded options to reduce noise interference in sensitive RF designs.
