IM2G16D3FDBG-125

Memory IC Overview

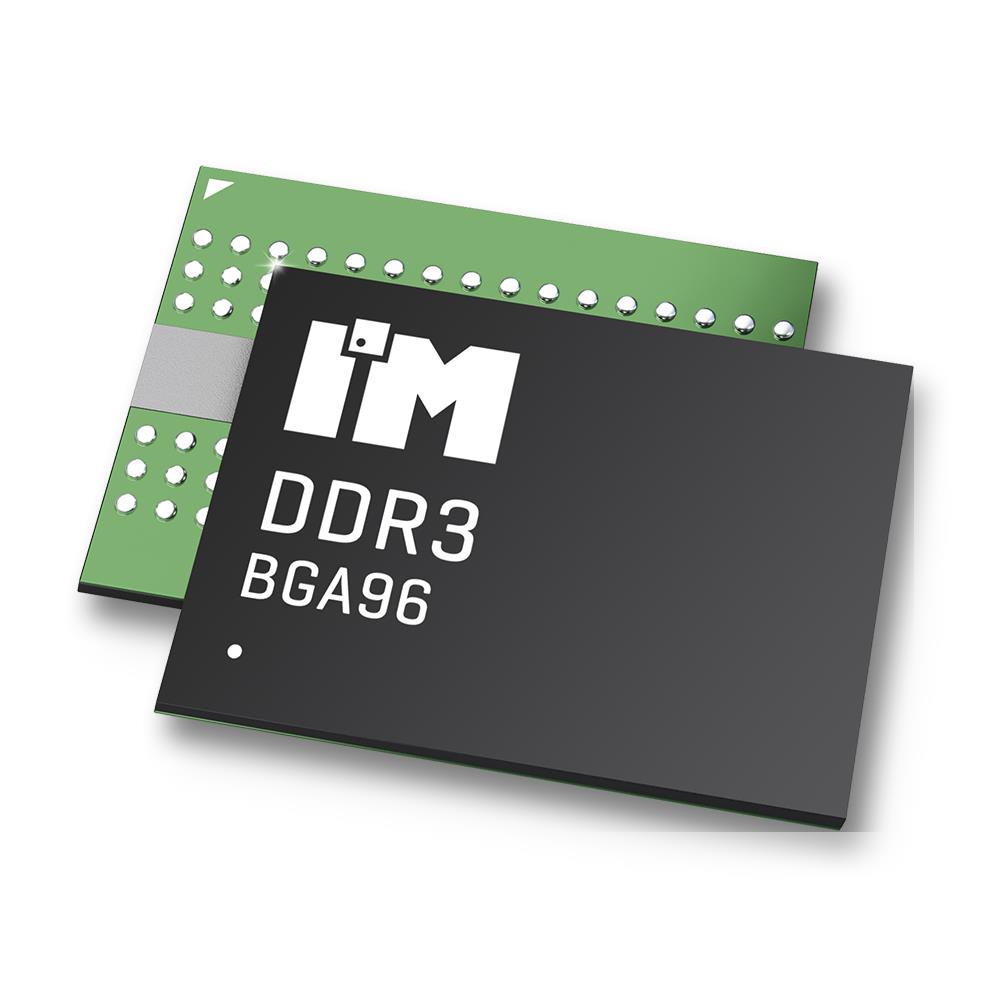

The IM2G16D3FDBG-125 is a DDR3L SDRAM memory IC manufactured by Intelligent Memory Ltd. It features a storage capacity of 2 Gbit organized as 128M x 16 bits with a data bus width of 16 bits. The device supports a maximum clock frequency of 800 MHz, corresponding to a data rate of 1600 Mbps, and has an access time of 20 ns. It operates within a voltage range of 1.35V to 1.5V and functions in temperatures from -40°C to +95°C. The component is housed in a 96-pin FBGA package (7.5x13 mm) designed for surface mount technology.

Memory IC Feature Summary

• Supports programmable burst length and CAS latency for flexible configuration
• Includes auto refresh and self-refresh capabilities for power management
• Compatible with standard DDR3/DDR3L signaling protocols

Memory IC Applications

• Embedded systems requiring low-power DRAM solutions
• Industrial control equipment operating in wide temperature ranges
• Portable electronic devices utilizing surface-mount memory

Memory IC Procurement Notes

Verify the specific suffix 'I' or absence thereof against the manufacturer's official documentation to confirm the exact temperature grade and electrical specifications. Ensure compatibility with the target system's voltage levels and interface requirements before integration. Confirm RoHS compliance status through the latest certificate of conformity provided by Intelligent Memory Ltd.

Memory IC Selection Notes

Select this component when a 2 Gbit density with a 16-bit interface is required for space-constrained applications. The FBGA-96 package offers a compact footprint suitable for high-density PCB layouts. Consider the -40°C to +95°C operating range if the application involves industrial or automotive environments where extended thermal performance is necessary.

Memory IC Part Context

This part belongs to the Intelligent Memory DDR3L series, which focuses on low-voltage operation for energy efficiency. The 2 Gbit capacity provides a balance between storage density and pin count, making it suitable for mid-range embedded applications. The 16-bit organization allows for efficient data throughput compared to narrower interfaces at similar densities.

Memory IC Replacement Considerations

Cross-reference with other Intelligent Memory parts in the IM2G16D3 series for alternative speed grades or temperature ranges. Verify pinout compatibility with existing designs when substituting with similar density parts from other manufacturers.
