IM4G16D3FDBG-107

Memory IC Overview

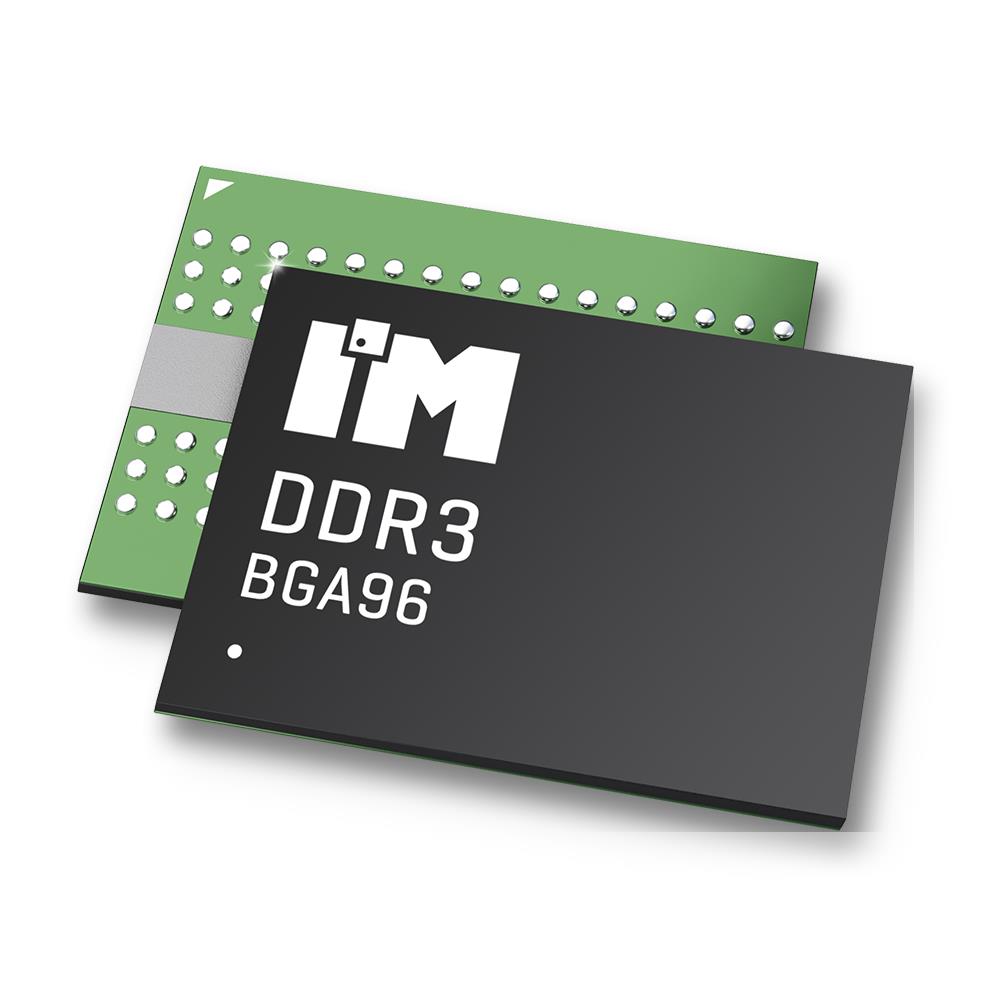

The IM4G16D3FDBG-107 is a 4 Gbit DDR3L SDRAM manufactured by Intelligent Memory. It features a 256 M x 16 organization with a 16-bit data bus width. The component supports a maximum clock frequency of 933 MHz (1866 Mbps) and operates within an extended industrial temperature range of -40°C to +95°C. It utilizes an FBGA-96 package and accepts supply voltages between 1.283 V and 1.45 V, ensuring compatibility with standard low-power DDR3 applications.

Memory IC Feature Summary

• Supports dual voltage operation for DDR3L compatibility
• Designed for high-speed data transfer at 1866 Mbps
• Operates reliably in extended industrial temperature environments

Memory IC Applications

• Industrial control systems requiring robust memory solutions
• Automotive electronics operating under harsh thermal conditions
• Embedded computing platforms utilizing DDR3L interfaces

Memory IC Procurement Notes

Verify the specific suffix 'I' indicates the extended industrial temperature grade (-40C to +95C) as documented. Confirm the FBGA-96 package dimensions match your PCB footprint requirements. Ensure the design supports the specified 1.283V to 1.45V voltage range for proper DDR3L functionality. Cross-reference the manufacturer part number directly to avoid confusion with similar capacity variants.

Memory IC Selection Notes

Select this component when an industrial temperature range is mandatory for DDR3L applications. The 16-bit interface suits wide-data bus architectures. Consider the FBGA-96 form factor for space-constrained designs. Verify system power supplies align with the 1.35V/1.5V operational specifications before integration into the final hardware design.

Memory IC Part Context

This device belongs to the Intelligent Memory DDR3L series, focusing on low-power dynamic random-access memory. It complements other offerings like the IM8G16D3FFDG-107, which shares similar electrical characteristics but differs in storage capacity and commercial temperature grading. The series targets embedded markets requiring reliable data retention across varying environmental conditions.

Memory IC Replacement Considerations

Direct substitutes include the IM8G16D3FFDG-107 for higher capacity needs, though pinouts and densities differ. Check Intelligent Memory's official documentation for equivalent parts within the same FBGA-96 package family that maintain identical timing parameters and voltage tolerances.
