Product Detailed Parameters
- Description：CIPOS MINI COOLMOS
- Series：CIPOS™
- Mfr：Infineon Technologies
- Package：Bulk,Bulk,Tube
- Motor Type - Stepper：Multiphase
- Motor Type - AC, DC：-
- Function：Driver
- Output Configuration：Half Bridge (2)
- Interface：PWM
- Technology：Power MOSFET
- Step Resolution：-
- Applications：General Purpose
- Current - Output：10A
- Voltage - Supply：14V ~ 18.5V
- Voltage - Load：-
- Operating Temperature：-40°C ~ 125°C
- Mounting Type：Through Hole
- Package / Case：24-PowerDIP Module (1.028", 26.10mm)
- Supplier Device Package：24-DIP
- Grade：-
- Qualification：-
Download product information
Overview

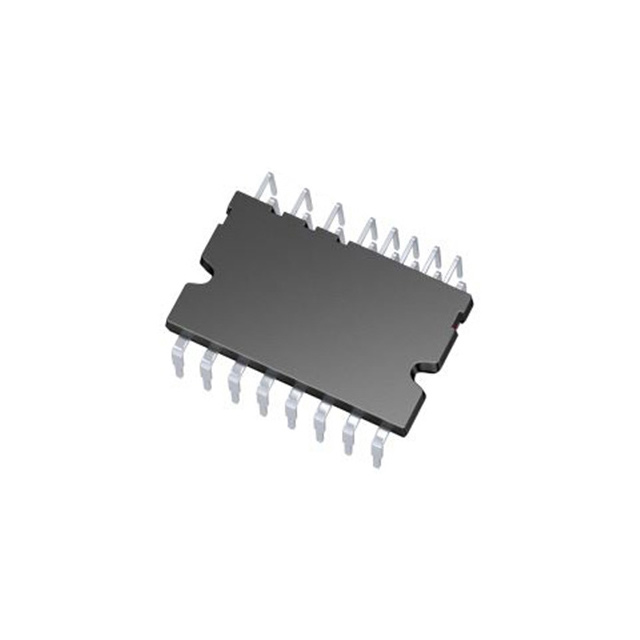

The IM512L6AXKMA1 is a half-bridge motor controller and driver from the CIPOS Mini series by Infineon Technologies. It features a 10 A output current capability with a maximum power dissipation of 29.7 W. The device operates within a supply voltage range of 13.5 V to 18.5 V, supporting a load voltage rating of 20 V. It functions at a working frequency of 20 kHz with a quiescent current of 900 uA. The component is housed in a 24-DIP through-hole package and supports an operating temperature range from -40 C to +125 C.
Feature Summary
- Integrates half-bridge drivers for motor control applications
- Includes built-in protection mechanisms for reliable operation
- Designed for efficient thermal management in compact packages
Applications
- Fan motor control systems
- General motion control circuits
- Ignition system drivers
Procurement Notes
Verify component authenticity through authorized channels due to end-of-life status. Confirm RoHS compliance and specific ordering suffixes match design requirements. Check datasheet revisions for parameter updates. Ensure thermal design accounts for specified power dissipation limits during integration.
Selection Notes
Select this component for applications requiring integrated half-bridge driving with moderate current needs. Consider the DIP-24 package for through-hole mounting constraints. Evaluate thermal performance against the 29.7 W dissipation limit. Verify compatibility with the 13.5 V to 18.5 V supply range for system power architecture.
Part Context
This part belongs to the CIPOS Mini family, which combines intelligent power technology with compact packaging. It serves as a specialized solution for motor and fan control, integrating gate drivers and protection features into a single semiconductor module to simplify circuit design and reduce board space.
Replacement Considerations
The IM513L6AXKMA1 is a confirmed substitute within the same CIPOS series. Both parts share similar half-bridge configurations and DIP-24 packaging. Verify pinout compatibility and electrical parameter alignment before substitution.
