IM523L6AXKMA1

Overview

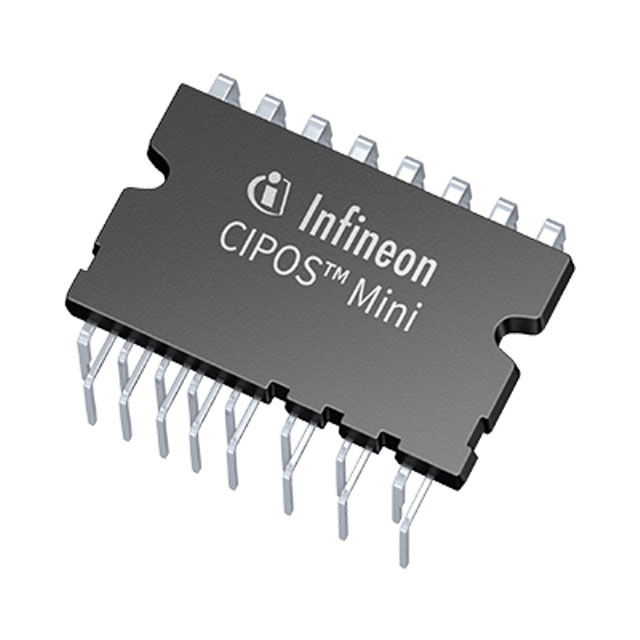

The IM523L6AXKMA1 is a CIPOS Mini intelligent power module featuring a three-phase open emitter topology. It integrates IGBT switching devices with a voltage rating of 600 V and a rated current of 15 A. The module supports a maximum output power of 1200 W at 10 kHz. It includes an internal NTC temperature sensor for thermal monitoring. The component operates within a junction temperature range of -40°C to 125°C and utilizes a 24-PowerDIP package with bias pins.

Feature Summary

• Integrates three-phase IGBT power stage with gate driver circuitry in a single compact module
• Includes built-in NTC thermistor for direct on-module temperature sensing
• Provides full control and power level integration for variable speed motor drives

Applications

• Variable speed motor drives
• Industrial motor control systems
• High-efficiency semiconductor applications for industrial drivers

Procurement Notes

Verify the specific ordering suffix KMA1 against the manufacturer datasheet to confirm tape-and-reel packaging configuration. Ensure the requested quantity aligns with standard manufacturing pack sizes to avoid partial reel handling issues. Confirm RoHS compliance status and lead time requirements directly with authorized distributors prior to finalizing procurement orders.

Selection Notes

Select this module for designs requiring high power density in three-phase inverter topologies. The integrated nature simplifies layout by combining power and control functions. Consider the 600V blocking capability and 15A continuous current limits when sizing the thermal management system. Verify that the application voltage and frequency requirements fall within the specified operational boundaries for reliable performance.

Part Context

This component belongs to the CIPOS Mini family, which represents a generation of intelligent power modules designed for extreme power density. These modules are engineered specifically for variable speed motor drive applications, offering a compact solution that reduces system footprint while maintaining robust electrical performance for industrial and commercial use cases.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation.
