IM6416SDBATG-6I

Memory IC Overview

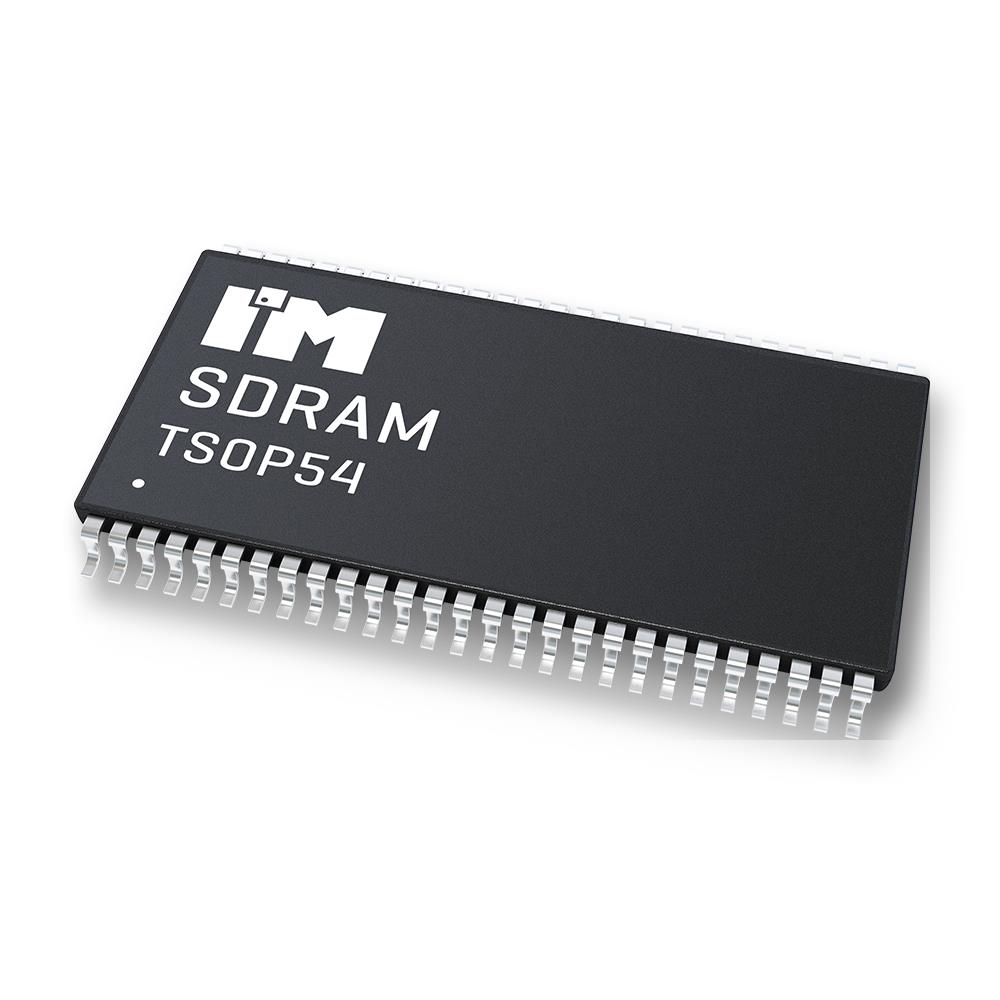

The IM6416SDBATG-6I is a 64 Mbit Synchronous Dynamic Random Access Memory (SDRAM) manufactured by Intelligent Memory. It features a 16-bit data bus width and an organization of 4 Meg x 16. The device supports a maximum clock frequency of 166 MHz with a typical access time of 5.4 ns. It operates within a voltage range of 3 V to 3.6 V and is rated for industrial temperatures from -40°C to +85°C. The component is housed in a surface-mount TSOP-II-54 package.

Memory IC Feature Summary

• Supports high-speed synchronous data transfer at frequencies up to 166 Mbps.
• Designed for operation across the full industrial temperature range.
• Utilizes standard SDRAM interface protocols for system integration.

Memory IC Applications

• Industrial control systems requiring reliable memory storage
• Embedded computing platforms operating in harsh environments
• Automotive electronics applications

Memory IC Procurement Notes

Verify the specific suffix '6I' confirms the extended industrial temperature rating (-40°C to +85°C) against the official datasheet, as commercial variants exist. Confirm the TSOP-II-54 footprint matches the target PCB design. Check RoHS compliance status directly on the manufacturer's documentation before finalizing procurement specifications.

Memory IC Selection Notes

Select this part when a 64 Mbit capacity with a 16-bit interface is required for space-constrained designs using TSOP packaging. Ensure the host controller supports SDRAM timing parameters compatible with the 5.4 ns access time. Consider power consumption limits, as active current reaches 50 mA, which may impact battery-operated or thermally sensitive applications.

Memory IC Part Context

This component belongs to the IM6416SD series of SDRAM devices from Intelligent Memory. It provides a standardized memory solution for legacy and industrial embedded architectures. The TSOP-II form factor allows for easier manual handling and prototyping compared to BGA packages while maintaining surface-mount compatibility.

Memory IC Replacement Considerations

Cross-reference with other Intelligent Memory parts in the IM6416SD family for pin-compatible alternatives with different speed grades or temperature ranges. Verify that any substitute maintains the same 16-bit width and 64 Mbit density to ensure electrical compatibility.
