IMC101TF048XUMA1

Overview

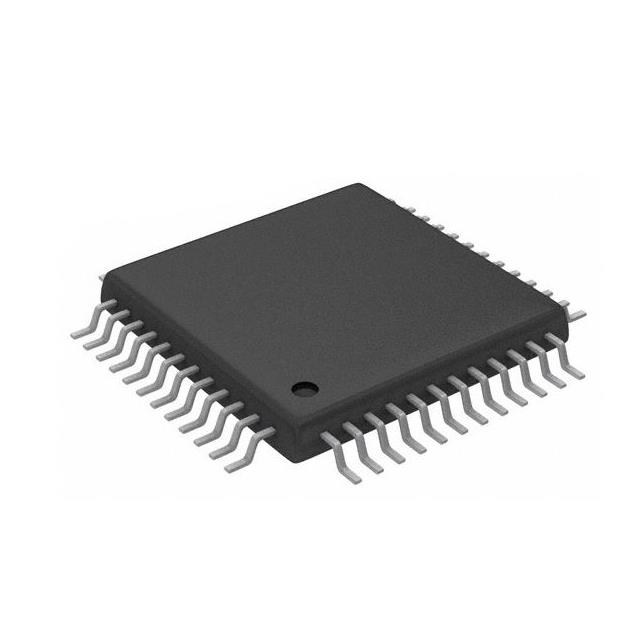

The IMC101TF048XUMA1 is a single-phase brushless DC motor controller from the iMOTION™ IMC100 series, manufactured by Infineon Technologies. It operates within a supply voltage range of 3 V to 5.5 V and supports an output current of 50 mA. The device utilizes a PG-LQFP-48 package with a maximum operating temperature of +105°C and a minimum of -40°C. It features MCE 2.0 scripting capabilities and Flash memory for control logic.

Feature Summary

• Integrates MCE 2.0 scripting engine for flexible motor control algorithms
• Supports high pin count configuration for extensive peripheral connectivity
• Includes integrated Flash memory for non-volatile program storage

Applications

• Small home appliances
• Robotics and automated guided vehicles (AGV)
• Brushless DC motor control systems

Procurement Notes

Verify component authenticity through authorized distributors or direct manufacturer channels. Confirm RoHS compliance and halogen-free status prior to integration. Check for moisture sensitivity level requirements during storage and handling. Ensure packaging integrity matches reel or cut tape specifications. Validate part number suffixes against official Infineon documentation to avoid counterfeit risks.

Selection Notes

Select this component for applications requiring integrated motor control with scripting flexibility in a compact LQFP package. Consider the 50 mA output limit and 5.5 V maximum supply voltage when designing power stages. Evaluate thermal performance given the +105°C operating limit. Compare against other IMC100 variants if different pin counts or packages are required.

Part Context

This part belongs to the iMOTION™ IMC100 family of integrated motor controllers. It is designed for low-power BLDC applications where software-defined control strategies are beneficial. The device combines control logic with driver interfaces in a single IC, reducing external component count compared to discrete solutions.

Replacement Considerations

No officially confirmed substitute part numbers are available in the provided documentation.
