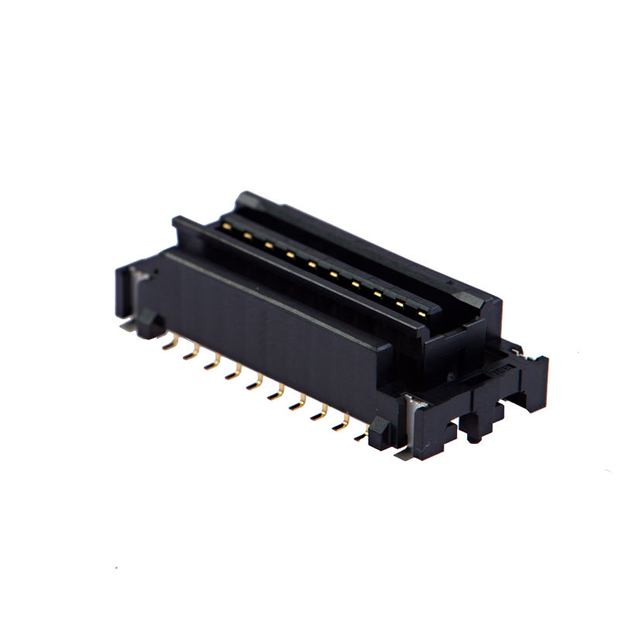

Arrays, Edge Type, Mezzanine (Board To Board) IMSA-10120B-20Y911 product image

IMSA-10120B-20Y911

$3.94

Description：CONN HEADER VERT B-TO-B FLOATING
Series：10120B
Mfr：IRISO USA Inc.
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:98b937bbd351 Category: Arrays, Edge Type, Mezzanine (Board to Board) Brand: IRISO USA Inc.

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

IMSA-10120B-20Y911 is listed in the Arrays, Edge Type, Mezzanine (Board To Board) range at ChipApex. The manufacturer field lists IRISO USA Inc.. Its product description is CONN HEADER VERT B-TO-B FLOATING. Review the specifications below when checking this part for your BOM.

Arrays, Edge Type, Mezzanine (Board To Board) specifications for IMSA-10120B-20Y911

Description：CONN HEADER VERT B-TO-B FLOATING
Series：10120B
Mfr：IRISO USA Inc.
Package：Tape & Reel (TR),Cut Tape (CT)
Connector Type：Plug, Center Strip Contacts
Number of Positions：20
Pitch：0.079" (2.00mm)
Number of Rows：2
Mounting Type：Surface Mount
Features：Board Guide, Solder Retention
Contact Finish：Gold
Contact Finish Thickness：4.00µin (0.100µm)
Mated Stacking Heights：-
Height Above Board：0.313" (7.95mm)

Arrays, Edge Type, Mezzanine (Board To Board) datasheet and documents for IMSA-10120B-20Y911

IMSA-10120B-20Y911
