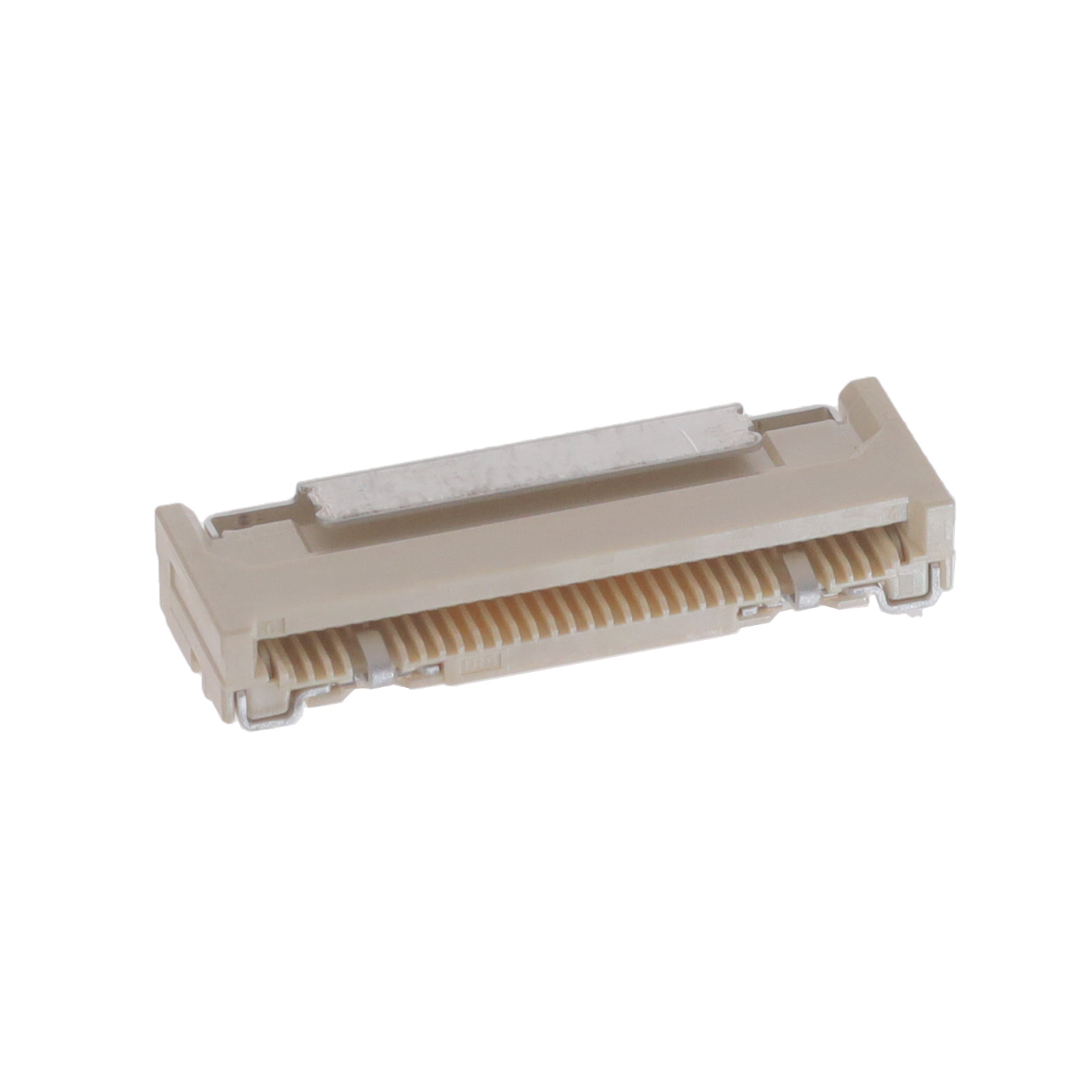

FFC, FPC (Flat Flexible) Connector Assemblies IMSA-11501S-32A-GFN1 product image

IMSA-11501S-32A-GFN1

$1.69

Description：CONN FFC BOTTOM 32POS 0.5MM R/A
Series：11501
Mfr：IRISO USA Inc.
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:c137c887f035 Category: FFC, FPC (Flat Flexible) Connector Assemblies Brand: IRISO USA Inc.

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

IMSA-11501S-32A-GFN1 is listed in the FFC, FPC (Flat Flexible) Connector Assemblies range at ChipApex. The manufacturer field lists IRISO USA Inc.. Its product description is CONN FFC BOTTOM 32POS 0.5MM R/A. Review the specifications below when checking this part for your BOM.

FFC, FPC (Flat Flexible) Connector Assemblies specifications for IMSA-11501S-32A-GFN1

Description：CONN FFC BOTTOM 32POS 0.5MM R/A
Series：11501
Mfr：IRISO USA Inc.
Package：Tape & Reel (TR),Cut Tape (CT)
Flat Flex Type：FFC, FPC
Mounting Type：Surface Mount, Right Angle
Connector/Contact Type：Contacts, Bottom
Number of Positions：32
Pitch：0.020" (0.50mm)
Termination：Solder
FFC, FCB Thickness：0.30mm
Height Above Board：0.134" (3.40mm)
Locking Feature：-
Cable End Type：Notched
Contact Material：Copper Alloy
Contact Finish：Gold
Housing Material：Liquid Crystal Polymer (LCP)
Actuator Material：-
Features：Solder Retention
Voltage Rating：50V
Operating Temperature：-
Material Flammability Rating：UL94 V-0

FFC, FPC (Flat Flexible) Connector Assemblies datasheet and documents for IMSA-11501S-32A-GFN1

IMSA-11501S-32A-GFN1
