IMSA-13065B-2-08Y900

Headers, Male Pins Overview

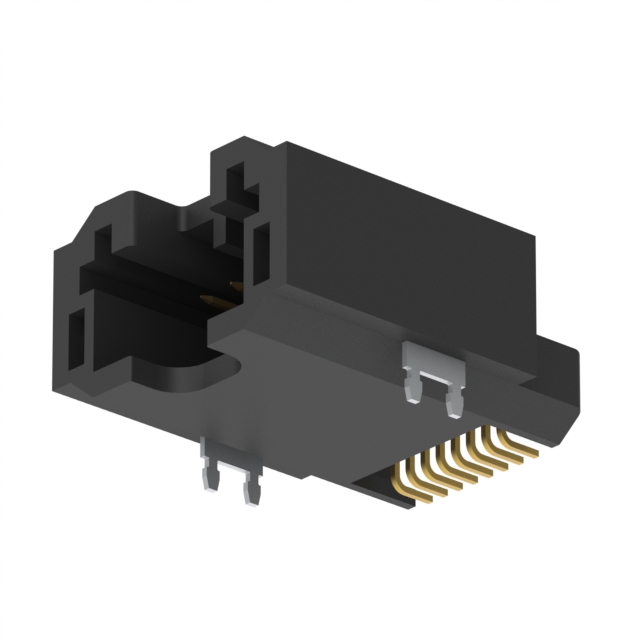

The IMSA-13065B-2-08Y900 is a surface mount right-angle header connector manufactured by IRISO USA Inc. It features an 8-position configuration with a 2.00mm pitch and dual-row arrangement. The component utilizes square male pins with tin plating on copper alloy contacts, housed in black PPS insulation rated UL94 V-0. Designed for board-to-board or cable applications, it offers a fixed solder tail and four-wall shielding. The connector supports positive locking via slide locks and operates within a temperature range of -40°C to 125°C.

Headers, Male Pins Feature Summary

• Positive locking mechanism utilizing slide locks for secure mating
• Four-wall shielded housing design for enhanced protection
• Fixed solder tail construction for reliable surface mount attachment

Headers, Male Pins Applications

• Board-to-board interconnections
• Cable-to-board connections
• Industrial automation systems
• Embedded electronic devices

Headers, Male Pins Procurement Notes

Verify the specific pin count and row configuration against project requirements before ordering. Confirm that the surface mount right-angle orientation matches the PCB layout constraints. Ensure compatibility with the mating female connector series. Check RoHS compliance status if required by environmental regulations. Validate the operating temperature range suitability for the intended application environment.

Headers, Male Pins Selection Notes

Select this component when a compact, dual-row header with positive locking is required for surface mount assembly. The 2.00mm pitch allows for moderate density routing while maintaining adequate spacing. Consider the four-wall shielding if electromagnetic interference protection is necessary. The fixed solder tail simplifies reflow soldering processes compared to floating variants.

Headers, Male Pins Part Context

This part belongs to the 13065B series of wire-to-board connectors from IRISO USA Inc. The series is characterized by its 2mm pitch and robust locking mechanisms. Variants within the series differ primarily in pin count and insulation height. The 13065B designation indicates a specific housing style optimized for high-reliability applications requiring secure mechanical retention.

Headers, Male Pins Replacement Considerations

Direct substitutes must match the 2.00mm pitch, dual-row configuration, and surface mount right-angle form factor. Verify that any alternative component provides equivalent positive locking functionality and similar shielding characteristics. Insulation material and flammability ratings should be comparable to ensure thermal performance consistency.
