IMSA-13065B-2-08Y901

Headers, Male Pins Overview

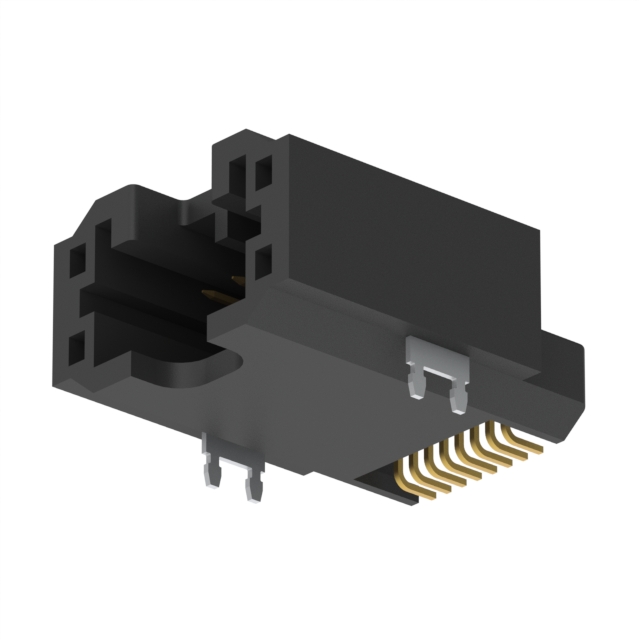

The IMSA-13065B-2-08Y901 is a surface mount right-angle header connector manufactured by IRISO USA Inc. It features 8 positions across two rows with a 0.079-inch (2.00mm) pitch. The connector utilizes square male pins made of copper alloy, finished with tin plating. Insulation is provided by black polyphenylene sulfide (PPS), rated UL94 V-0. It offers a four-wall shield and positive locking retention for secure board-to-board or cable connections.

Headers, Male Pins Feature Summary

• Surface mount right-angle design for compact PCB integration
• Positive locking mechanism ensures secure mating stability
• Four-wall shielding provides electromagnetic interference protection
• Fixed solder tail construction supports automated assembly processes

Headers, Male Pins Applications

• Board-to-board interconnections in electronic assemblies
• Cable-to-board wiring harnesses
• Automotive electronics systems
• Industrial control modules requiring reliable signal transmission

Headers, Male Pins Procurement Notes

Verify the specific suffix Y901 against official IRISO documentation to confirm pin count and keying configuration. Ensure compatibility with mating connectors from the same series. Confirm RoHS compliance status and moisture sensitivity level requirements before procurement. Cross-reference datasheet revision numbers to avoid obsolete component orders.

Headers, Male Pins Selection Notes

Select this component when a low-profile, right-angle header is required for dense circuit layouts. The two-row configuration maximizes connection density within limited footprint constraints. Consider the 2.00mm pitch for standard signal routing needs. Evaluate thermal management requirements given the PPS insulation material properties.

Headers, Male Pins Part Context

This part belongs to the IMSA-13065B series of wire-to-board and board-to-board connectors. It shares design characteristics with other variants in the family, differing primarily in position count and packaging options. The series is known for robust mechanical retention and consistent electrical performance in demanding environments.

Headers, Male Pins Replacement Considerations

Direct substitutes include IMSA-13065B-2-08Y900. Verify dimensional tolerances and contact finish specifications match application requirements before substitution.
