IMSA-13065B-2-08Y902

Headers, Male Pins Overview

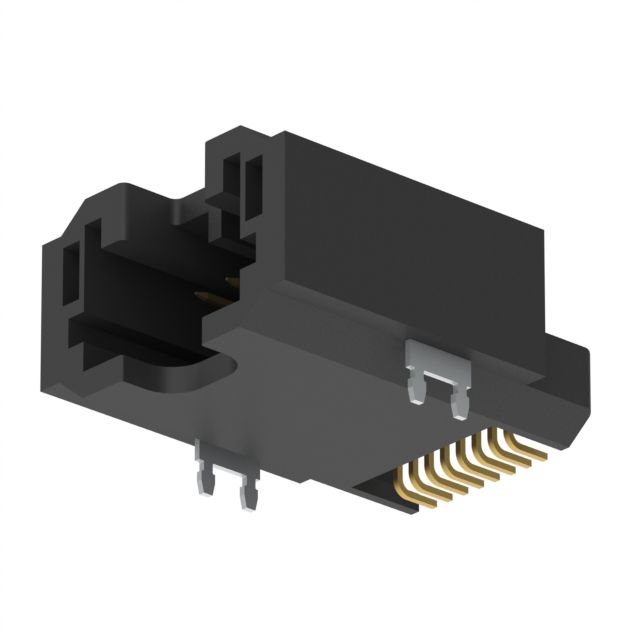

The IMSA-13065B-2-08Y902 is a rectangular connector header manufactured by IRISO USA Inc. It features a surface mount, right-angle termination style with 8 positions arranged in a dual row configuration. The mating pitch is 0.079 inches (2.00mm), and the row spacing is 0.098 inches (2.50mm). The connector utilizes square-shaped male pins made of copper alloy with tin plating. The housing is constructed from black polyphenylene sulfide (PPS) material rated UL94 V-0 for flammability. It includes a four-wall shielded cover and employs a locking slide mechanism for secure attachment.

Headers, Male Pins Feature Summary

• Surface mount right-angle design for compact board integration
• Four-wall shielded cover for enhanced signal protection
• Locking slide fastening type for secure mating
• Tin-plated copper alloy contacts for reliable conductivity

Headers, Male Pins Applications

• General electronic interconnects
• Board-to-board connections
• Industrial control systems
• Consumer electronics assemblies

Headers, Male Pins Procurement Notes

Verify the specific suffix Y902 against official IRISO documentation to confirm right-angle surface mount orientation and keying. Ensure compatibility with mating receptacles regarding pin count and pitch dimensions. Confirm that the four-wall shielded cover requirement aligns with system EMC needs. Validate insulation material properties against environmental operating conditions before finalizing procurement specifications.

Headers, Male Pins Selection Notes

Select this component when a low-profile, right-angle header is required for space-constrained designs. The 2.00mm pitch offers a balance between density and manufacturability. Consider the four-wall shielding if electromagnetic interference mitigation is necessary. Ensure PCB layout accommodates the surface mount footprint and right-angle profile constraints effectively during the initial design phase.

Headers, Male Pins Part Context

This part belongs to the IMSA-13065B series of rectangular connectors. The series offers various position counts and configurations. The IMSA-13065B-2-08Y902 specifically denotes an 8-position variant. Other variants in the family include different pin counts such as 12, 16, 32, and 40 positions. All share similar structural characteristics including the PPS housing and tin-plated contacts.

Headers, Male Pins Replacement Considerations

Direct substitutes must match the 2.00mm pitch, 8-position count, right-angle SMT form factor, and four-wall shielded cover. Verify that alternative headers maintain identical locking slide mechanisms and UL94 V-0 insulation ratings. Cross-reference mounting hole patterns and terminal dimensions to ensure mechanical compatibility with existing PCB layouts and mating components.
