IMSA-13065B-2-12Y900

Headers, Male Pins Overview

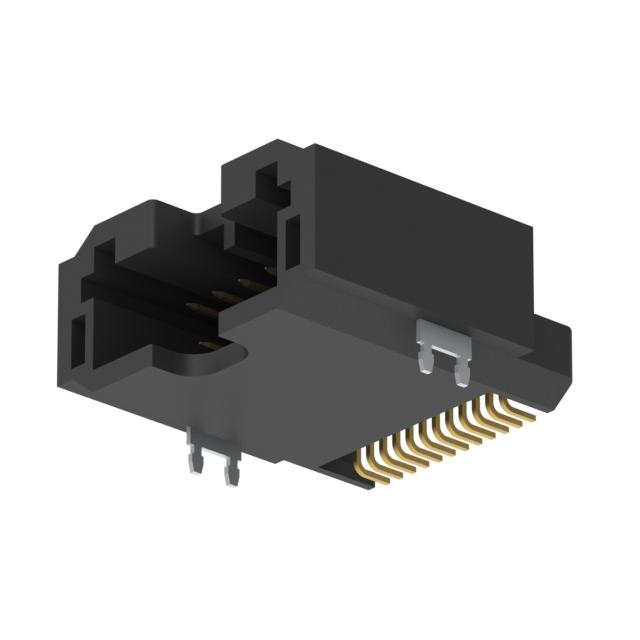

The IMSA-13065B-2-12Y900 is a surface mount, right-angle header connector manufactured by IRISO USA Inc. It features a 2-row configuration with 12 positions and a 2.00mm mating pitch. The connector utilizes square male pins with tin plating for reliable electrical contact. Constructed with black polyphenylene sulfide insulation rated UL94 V-0, it ensures thermal stability. The unit includes a four-wall shielded housing and locking ramp retention to secure mating connections. Designed for board-to-board or wire-to-board applications, it supports automated SMT assembly processes.

Headers, Male Pins Feature Summary

• Surface mount right-angle design facilitates compact PCB layout integration
• Four-wall shielded housing provides structural protection and alignment
• Locking ramp mechanism ensures secure positive retention during mating
• Tin-plated copper alloy contacts offer corrosion resistance and conductivity

Headers, Male Pins Applications

• Automotive electronic modules
• Industrial control systems
• Consumer electronics assemblies
• Low-frequency signal interconnections

Headers, Male Pins Procurement Notes

Verify the specific suffix Y900 against the official datasheet to confirm pin count and keying orientation. Ensure compatibility with standard 2.00mm pitch mating headers. Confirm RoHS3 compliance requirements match project specifications. Check moisture sensitivity level handling procedures if storage conditions exceed manufacturer recommendations. Validate that the selected packaging format aligns with available pick-and-place equipment capabilities.

Headers, Male Pins Selection Notes

Select this component when a low-profile, right-angle connection is required for space-constrained designs. The two-row arrangement maximizes density while maintaining a 2.50mm row spacing. Consider the locking ramp feature for applications requiring vibration resistance. The PPS material offers high heat resistance suitable for reflow soldering profiles. Evaluate the fixed tail characteristic for stable mechanical mounting on the target circuit board.

Headers, Male Pins Part Context

This part belongs to the 13065B series of wire-to-board connectors from IRISO. The series is characterized by its positive locking mechanism and robust construction. It is designed for general-purpose interconnect needs in various electronic industries. The product line emphasizes reliability through standardized dimensions and material choices. It serves as a critical interface between flexible cables and rigid printed circuit boards.

Headers, Male Pins Replacement Considerations

Direct substitutes within the same series include IMSA-13065B-2-16Y900 and IMSA-13065B-2-20Y900 for different pin counts. Cross-referencing with other manufacturers requires matching the 2.00mm pitch and right-angle form factor. Verify that alternative parts support the same locking ramp retention style. Ensure insulation height and shielding characteristics are compatible with existing enclosure constraints.
