IMSA-13065B-2-12Y901

Headers, Male Pins Overview

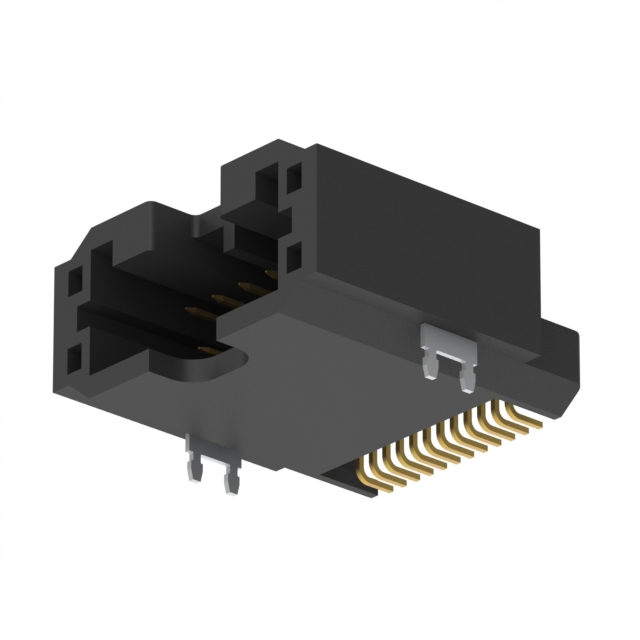

The IMSA-13065B-2-12Y901 is a surface mount right-angle header connector manufactured by IRISO USA Inc. It features 12 positions with a 2.00mm pitch and utilizes a dual-row configuration. The connector employs square pin contacts made of copper alloy, finished with tin plating measuring 39.4µin (1.00µm) thickness. Insulation is provided by black polyphenylene sulfide (PPS), ensuring UL94 V-0 flammability rating. Rated for 3A current at 50VAC, it operates within a temperature range of -40°C to 125°C. The design includes a four-wall shield and positive locking mechanism.

Headers, Male Pins Feature Summary

• Positive locking mechanism ensures secure mating stability
• Four-wall shielding provides electromagnetic interference protection
• Fixed solder tail design facilitates reliable surface mount assembly

Headers, Male Pins Applications

• Wire-to-board interconnections in consumer electronics
• Board-to-board connections requiring high reliability
• Industrial control systems operating in varied temperatures

Headers, Male Pins Procurement Notes

Verify the specific suffix Y901 against official datasheets to confirm insulation height and keying orientation. Ensure compatibility with mating connectors from the same series. Confirm RoHS compliance status matches project requirements. Check moisture sensitivity level handling procedures during storage and reflow processes.

Headers, Male Pins Selection Notes

Select this component when a low-profile, dual-row header is required for space-constrained designs. The 2.00mm pitch offers a balance between density and ease of assembly. Consider the right-angle form factor for vertical board stacking or cable routing constraints. Validate thermal performance against application heat loads.

Headers, Male Pins Part Context

This part belongs to the IMSA-13065B series, designed for wire-to-board and board-to-board applications. The series emphasizes high heat resistance and positive locking capabilities. It is commonly used in environments demanding robust electrical connections with minimal profile.

Headers, Male Pins Replacement Considerations

Direct substitutes include other 12-position, 2.00mm pitch headers from IRISO with identical locking and shielding features. Verify mechanical dimensions and electrical ratings before substitution.
