IMSA-13065B-2-12Y902

Headers, Male Pins Overview

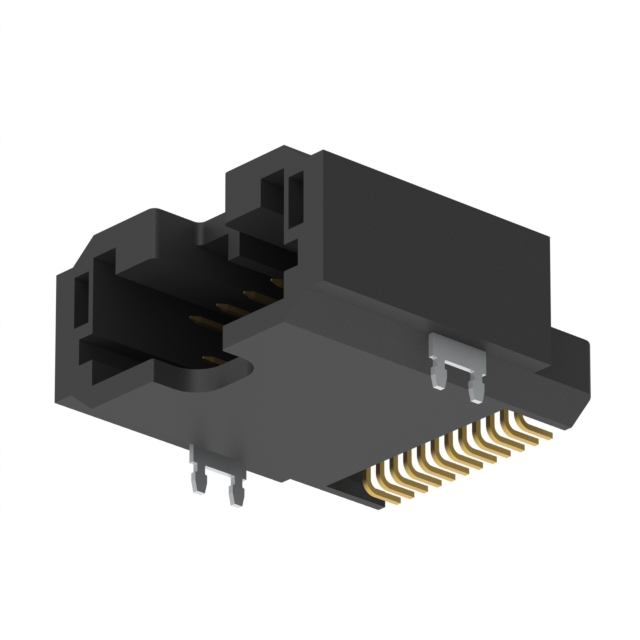

The IMSA-13065B-2-12Y902 is a board connector from the IRISO 13065 Series, designed for surface mount technology (SMT) assembly. It features a right-angle header configuration with 12 positions arranged in two rows. The mating pitch is 2.00 mm (0.079 inches), while the board mounting pitch is 1.00 mm. The connector utilizes square male pins made of copper alloy with tin plating, providing a contact thickness of 39.4 µin (1.00 µm). The insulation material is polyphenylene sulfide (PPS), supporting an operating temperature up to +125°C. The housing height is 9.30 mm (0.366 inches), and it employs a locking type with slide rails.

Headers, Male Pins Feature Summary

• Right-angle surface mount design for automated SMT assembly
• Two-row configuration with 2.00 mm mating pitch
• Polyphenylene sulfide insulation for high-temperature stability
• Slide rail locking mechanism for secure connection

Headers, Male Pins Applications

• Automotive electronics systems
• High-temperature circuit board interconnections
• Surface mount assembly lines

Headers, Male Pins Procurement Notes

Verify the specific keying variant (Key-B vs Key-A) against the schematic, as suffixes may denote polarization differences not always explicit in generic listings. Confirm that the 12-position count matches the design requirement. Ensure the right-angle orientation aligns with the PCB layout constraints. Cross-reference the PPS insulation rating with thermal requirements. Validate the tin plating specification against corrosion resistance needs.

Headers, Male Pins Selection Notes

Select this component when a right-angle, two-row header is required for space-constrained PCB layouts. The 2.00 mm pitch offers a balance between density and manufacturability. The PPS material ensures reliability in environments exceeding standard temperature limits. Consider the slide rail lock if vibration resistance is critical. Ensure compatibility with mating connectors from the same series family.

Headers, Male Pins Part Context

This part belongs to the IRISO 13065 Series, which specializes in high-temperature, two-row right-angle headers for SMT applications. The series includes various pin counts and keying options to accommodate different board designs. The IMSA-13065B-2-12Y902 specifically denotes the 12-position variant with its associated mechanical and electrical specifications within this standardized product line.

Headers, Male Pins Replacement Considerations

Direct substitutes include other 12-position, 2.00 mm pitch, right-angle SMT headers from IRISO, such as IMSA-13065B-2-12Y900, provided the keying and locking mechanism are compatible. Verify that alternative parts maintain the same PPS insulation and tin plating specifications to ensure equivalent thermal and electrical performance.
