IMSA-13065B-2-16Y900

Headers, Male Pins Overview

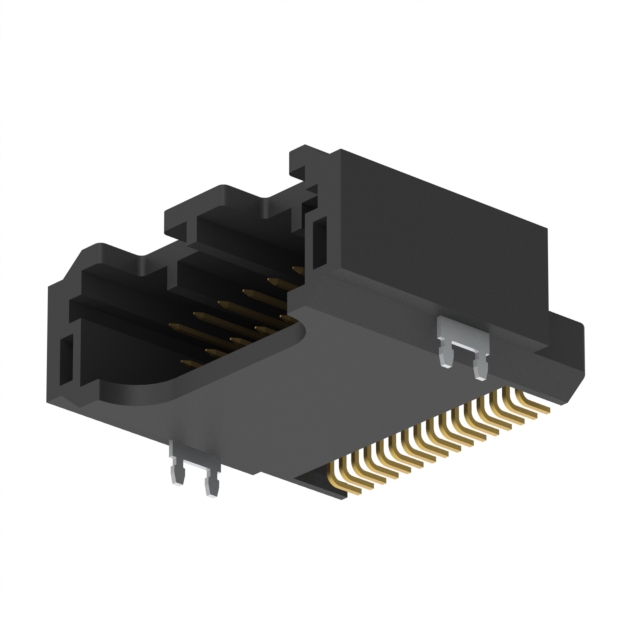

The IMSA-13065B-2-16Y900 is a surface mount right-angle header connector manufactured by IRISO USA Inc. It features a 2-row configuration with 16 total positions and a 2.00mm mating pitch. The component utilizes square male pins with tin plating on copper alloy contacts, housed in black PPS insulation rated UL94 V-0. Designed for board-to-board or cable applications, it includes a four-wall shielded cover and positive locking retention via slide locks.

Headers, Male Pins Feature Summary

• Positive locking mechanism ensures secure mating through slide lock retention.
• Four-wall shielded cover design provides comprehensive contact protection.
• Fixed solder tail construction supports reliable surface mount assembly.

Headers, Male Pins Applications

• Board-to-board interconnections
• Cable to board connections
• Industrial control modules

Headers, Male Pins Procurement Notes

Verify the specific pin count and row configuration against project requirements before ordering. Confirm that the surface mount right-angle orientation matches the PCB layout constraints. Ensure compatibility with the mating female connector series to guarantee proper engagement of the positive locking feature.

Headers, Male Pins Selection Notes

Select this component when a robust, locked connection is required for 2.00mm pitch applications. The two-row format allows for higher density compared to single-row alternatives. Consider the fixed solder tail requirement for automated pick-and-place manufacturing processes.

Headers, Male Pins Part Context

This part belongs to the 13065B series of wire-to-board connectors from IRISO USA Inc. The series is characterized by its positive locking capability and durable construction suitable for demanding environments. The specific model denotes a 16-position variant within this standardized product line.

Headers, Male Pins Replacement Considerations

Direct substitutes are not explicitly confirmed in public documentation. Verify mechanical dimensions and electrical ratings if considering alternative manufacturers. Cross-reference the 13065 series specifications to ensure functional equivalence.
