IMSA-13065B-2-16Y901

Headers, Male Pins Overview

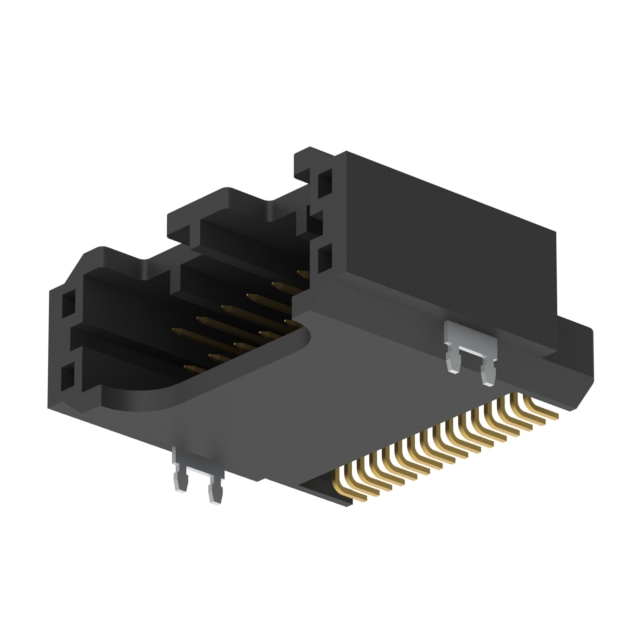

The IMSA-13065B-2-16Y901 is a surface-mount right-angle header connector from the IRISO USA Inc. 13065B series. It features 16 positions arranged in two rows with a 0.079-inch (2.00mm) mating pitch and 0.098-inch (2.50mm) row spacing. The connector utilizes square pin contacts made of copper alloy, finished with tin plating measuring 39.4µin (1.00µm). Constructed with black polyphenylene sulfide (PPS) insulation rated UL94 V-0, it offers an insulation height of 0.366 inches (9.30mm). Designed for board-to-board or cable applications, it employs a positive locking slide latch mechanism and includes four-wall shielding.

Headers, Male Pins Feature Summary

• Positive locking slide latch mechanism ensures secure connection retention
• Four-wall shielded design provides electromagnetic interference protection
• High-temperature resistant PPS insulation supports operation up to +125°C
• Surface mount right-angle termination facilitates automated assembly processes

Headers, Male Pins Applications

• Board-to-board interconnections in high-density electronic assemblies
• Cable-to-board connections requiring right-angle routing
• Automated surface mount technology production lines
• Industrial control systems operating at elevated temperatures

Headers, Male Pins Procurement Notes

Verify that the specific part number matches the required position count and keying configuration before procurement. Confirm that the surface-mount footprint aligns with the PCB design specifications. Ensure that the thermal profile during soldering does not exceed the component's temperature ratings. Check for any specific handling requirements related to the positive locking mechanism. Validate compatibility with mating connectors within the same series to ensure proper engagement.

Headers, Male Pins Selection Notes

Select this connector when a right-angle surface-mount solution with positive locking is required. Consider the 2.00mm pitch for spacing constraints and the two-row configuration for higher density. Evaluate the thermal stability provided by the PPS material if the application involves high ambient temperatures. Assess the need for shielding against electromagnetic interference. Compare the mechanical retention strength of the slide latch against other locking methods available in the series.

Headers, Male Pins Part Context

This component belongs to the 13065B series of wire-to-board and board-to-board connectors designed for high-temperature environments. The series features right-angle surface-mount headers with various position counts and locking mechanisms. These connectors are engineered for reliability in industrial and automotive applications where vibration resistance and thermal stability are critical performance factors.

Headers, Male Pins Replacement Considerations

Direct substitutes within the same series include IMSA-13065B-2-24Y901 and IMSA-13065B-2-32Y901, which share identical mechanical and electrical characteristics but differ in position count. Verify that the replacement part maintains the same keying option and shielding configuration to ensure compatibility with existing designs.
