IMSA-13065B-2-16Y902

Headers, Male Pins Overview

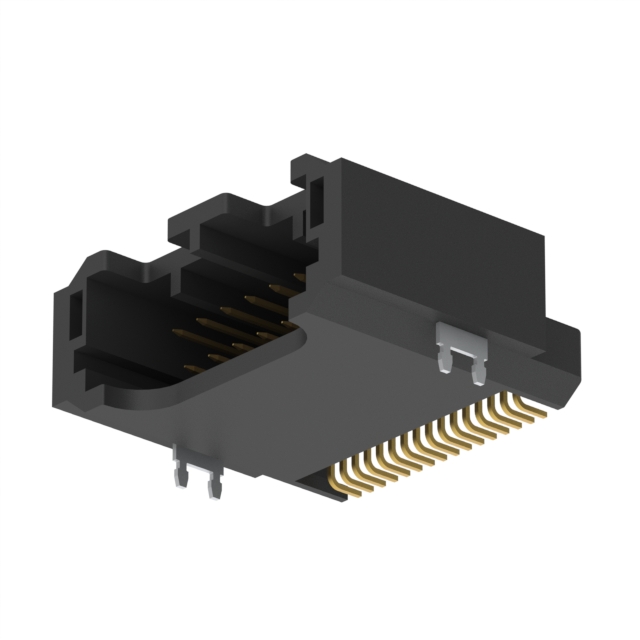

The IMSA-13065B-2-16Y902 is a surface mount right-angle header connector manufactured by IRISO USA Inc. It features 16 positions arranged in two rows with a 2.00mm pitch and 2.50mm row spacing. The connector utilizes square pin contacts made of copper alloy, finished with tin plating. Designed for board-to-board or cable applications, it includes shrouded four-wall shielding and fixed solder tails to support standard reflow soldering processes.

Headers, Male Pins Feature Summary

• Designed for high-temperature environments up to +125°C
• Shrouded four-wall structure provides contact protection
• Fixed solder tails facilitate automatic surface mount assembly

Headers, Male Pins Applications

• Board-to-board interconnections
• Cable-to-board connections
• High-temperature electronic assemblies

Headers, Male Pins Procurement Notes

Verify the specific suffix '902' against official datasheets to confirm compatibility with standard reflow profiles. Ensure that the required pin count matches the 16-position configuration. Confirm that the right-angle orientation aligns with the PCB layout requirements. Validate that the tin-plated contacts meet the corrosion resistance standards for the intended operating environment.

Headers, Male Pins Selection Notes

Select this component when a right-angle surface mount header is required for compact designs. The 2.00mm pitch offers a balance between density and manufacturability. The shrouded design helps prevent misalignment during mating. Consider the thermal rating if the application involves significant heat generation or high ambient temperatures.

Headers, Male Pins Part Context

This part belongs to the IRISO 13065 Series, which specializes in two-row, right-angle connectors suitable for Surface Mount Technology. The series is engineered for automated assembly processes, ensuring consistent placement and reliable solder joints. The design prioritizes mechanical stability and electrical performance in dense circuit board layouts.

Headers, Male Pins Replacement Considerations

Cross-reference with other IRISO 13065B variants sharing the same 16-position count and 2.00mm pitch. Verify that any substitute maintains the right-angle orientation and shrouded four-wall shielding. Ensure the replacement supports the same reflow soldering process and thermal ratings.
