IMSA-13065B-2-20Y900

Headers, Male Pins Overview

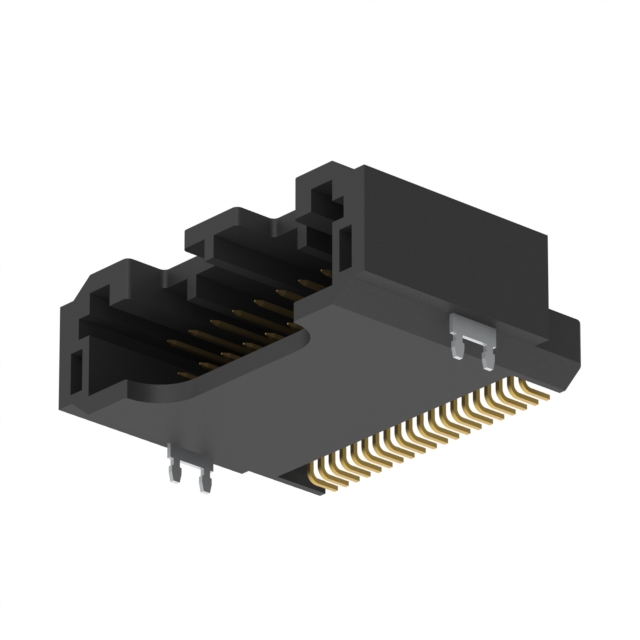

The IMSA-13065B-2-20Y900 is a surface mount, right-angle header connector manufactured by IRISO USA Inc. It features a 20-position configuration with a 2.00mm pitch and dual rows separated by 2.50mm spacing. The housing is constructed from black polyphenylene sulfide (PPS) rated UL94 V-0, providing an insulation height of 9.30mm. Contacts are copper alloy pins with a square shape, finished with 1.00µm tin plating for mating surfaces and posts. Designed for board-to-board or cable applications, it utilizes a positive locking pin-and-slot retention system and includes four-wall shielding.

Headers, Male Pins Feature Summary

• Positive locking pin-and-slot retention mechanism ensures secure connection stability
• Four-wall shielded housing design provides comprehensive electromagnetic protection
• Fixed solder tail construction supports reliable surface mount assembly processes

Headers, Male Pins Applications

• Board-to-board interconnections in electronic assemblies
• Cable-to-board connections requiring right-angle routing
• Industrial control systems utilizing positive locking connectors
• Automotive electronics modules needing robust mechanical retention

Headers, Male Pins Procurement Notes

Verify the specific suffix codes against official datasheets to confirm pin count, row configuration, and keying orientation. Ensure compatibility with automated pick-and-place equipment specifications. Confirm RoHS compliance status and moisture sensitivity level requirements for your manufacturing environment before finalizing orders.

Headers, Male Pins Selection Notes

Select this component when a right-angle, dual-row header with positive locking features is required. The 2.00mm pitch suits moderate density layouts. Consider the fixed solder tail for standard SMT reflow profiles. Evaluate the 9.30mm insulation height for clearance needs relative to adjacent components on the PCB.

Headers, Male Pins Part Context

This part belongs to the IMSA-13065B series, which focuses on wire-to-board and board-to-board connectivity solutions. The series emphasizes positive locking mechanisms and shielded designs for demanding environments. It complements other variants in the line that differ primarily in position counts and keying options while maintaining consistent electrical and mechanical standards.

Headers, Male Pins Replacement Considerations

Direct substitutes within the same series include IMSA-13065B-2-12Y900 and IMSA-13065B-2-24Y900, which share identical mechanical and electrical characteristics but differ in contact count. Verify that alternative sources match the specific locking mechanism and shielding requirements.
